KC10D

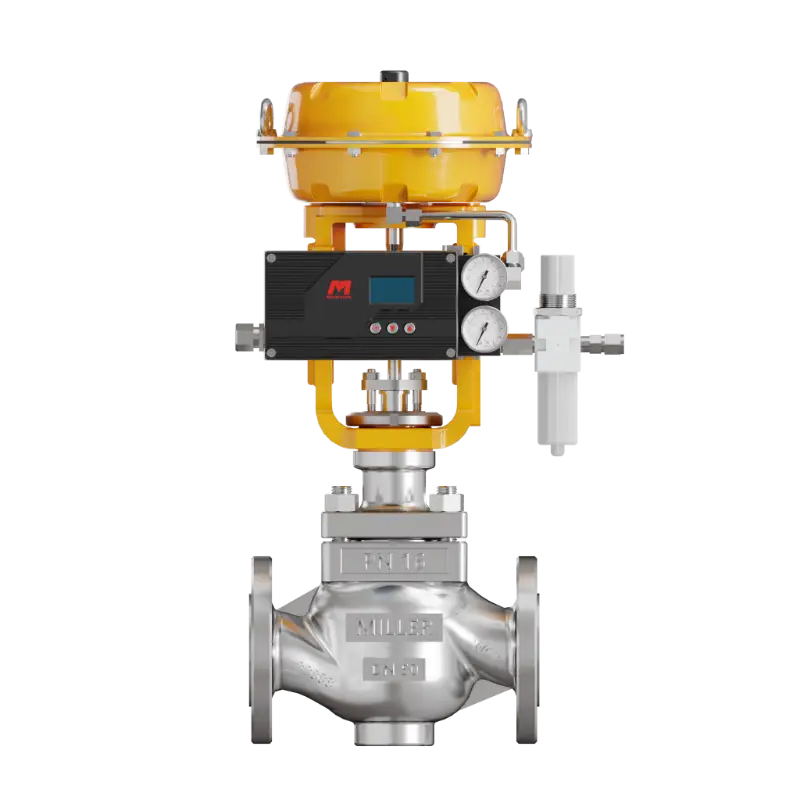

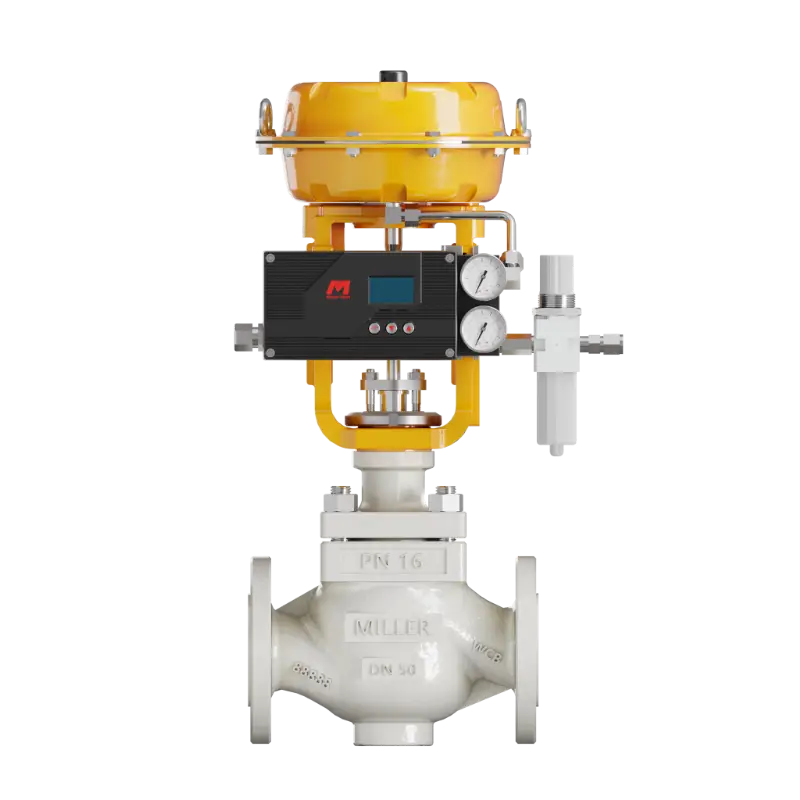

Pneumatic Low-Noise Control Valve
Design Features

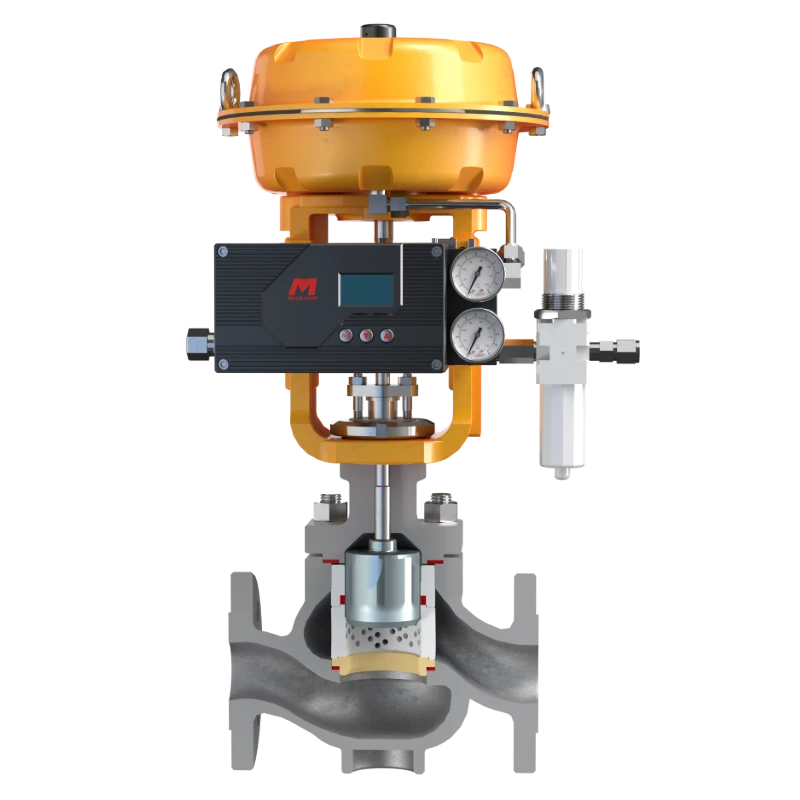

The defining feature of pneumatic low-noise control valves is their specialized noise-reduction design, including multi-stage cages, perforated plate acoustic dampers, or symmetrical orifice trim. Through multi-stage throttling, these valves progressively reduce pressure and control flow velocity, effectively mitigating cavitation, vibration, and noise (typically achieving 20–30 dB(A) reduction at 1000 Hz). Equipped with high-performance actuators (e.g., multi-spring diaphragm or cylinder types), they deliver rapid response and high positioning accuracy. Additionally, pressure-balanced trim designs minimize unbalanced forces, enabling reliable operation in high-pressure differential applications.
Contact us
| Product Name | Pneumatic Low-Noise Control Valve |
| Model Number | KC10D |
| Nominal Diameter | NPS 1/2" ~ 24" (DN15 ~ DN600) |
| Pressure Rating | Class 150 ~ Class 2500 (PN16 ~ PN420) |
| Body Material | Carbon Steel (A), 304 Stainless Steel (S), 316 Stainless Steel (L), Inconel, Monel, Hastelloy, Ti, etc. |
| Bonnet Type | Standard, Extended, Cryogenic, Bellows Seal, Jacketed (Thermal Insulation) |
| Seal Material | PTFE, Metal Seat, Hard Alloy |
| Leakage Class | ANSI Class IV, V, VI |
| Medium Temperature | -196℃ ~ 540℃ |
| Connection Type | Threaded (1), Welded (2), Wafer (3), Flanged (4) |
| Trim Type | Cage Control Valve (T) |
| Control Accuracy | ±0.1% |
| Actuation Type | Pneumatic Diaphragm Actuator |
| Supply Pressure | 200–400 kPa |
| Air Supply Port | RC1/4 |
| Pneumatic Actuator | Optional |
| Action Type | Fail Open (FO) – Air-to-Close (B); Fail Closed (FC) – Air-to-Open (K) |
| Optional Accessories | Positioner, Air Filter Regulator, Lock-up Valve, Limit Switch, Position Transmitter, Handwheel, etc. |
| Stroke (mm) | 10, 16, 25, 40, 60, 100 |
| Remarks | Other special seal materials or temperature requirements can be customized according to customer specifications. |
