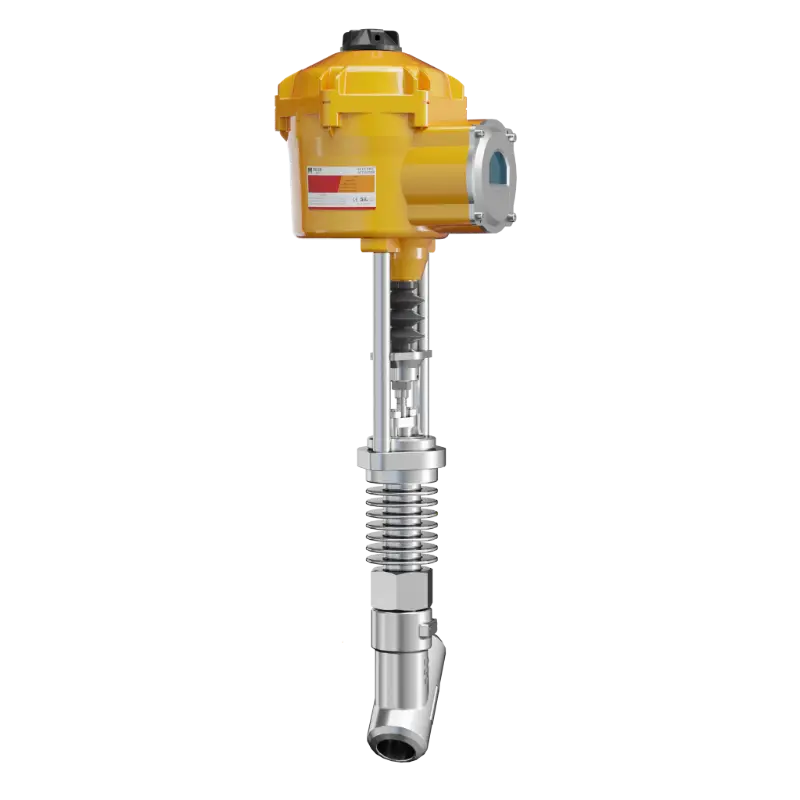

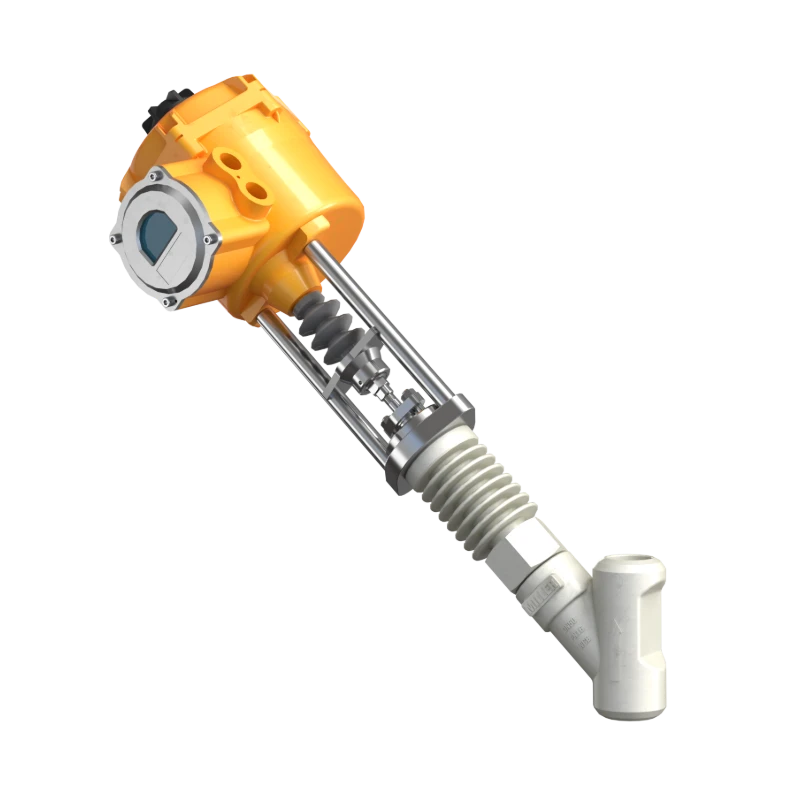

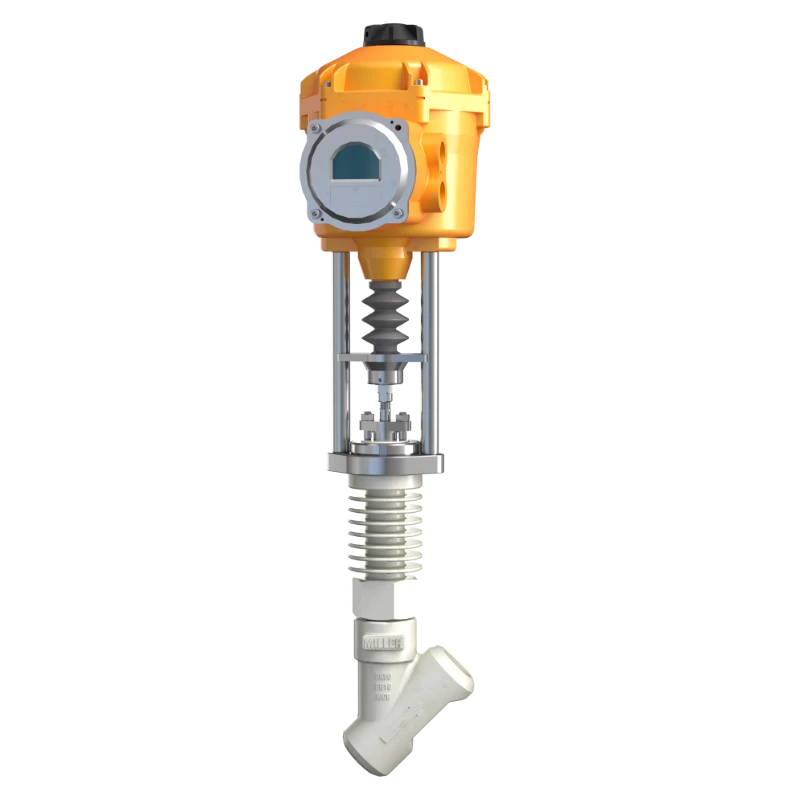

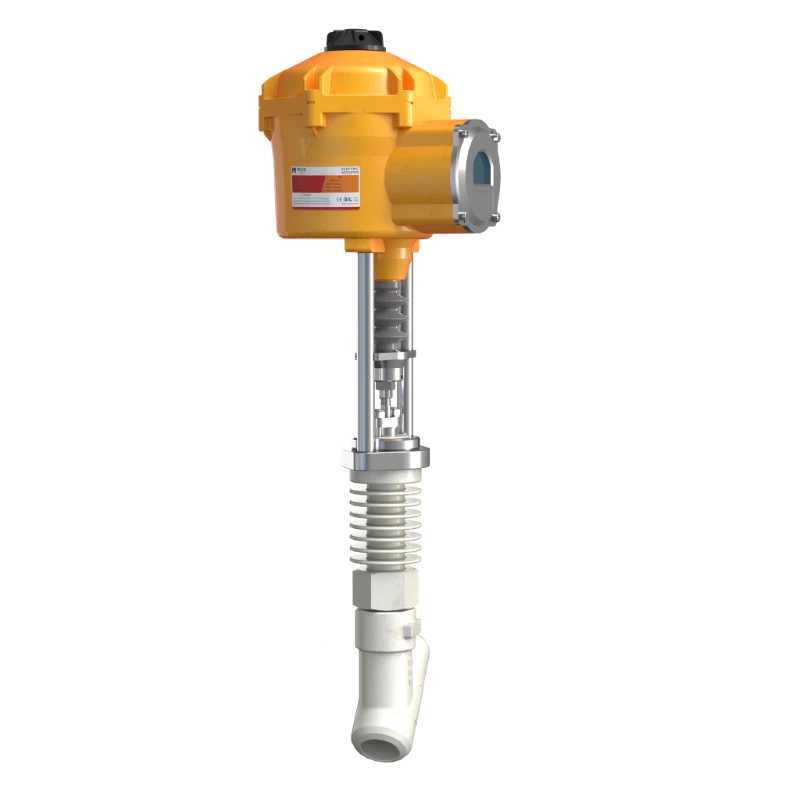

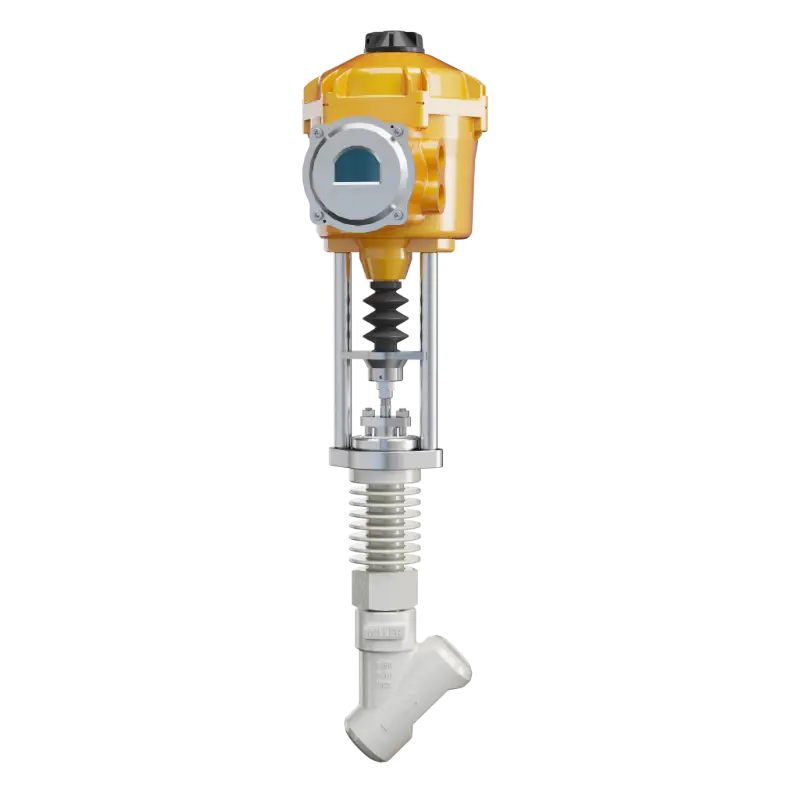

Electric Steam Trap Valve

EC10Y

Electric Steam Trap Valve

Design Features
The core advantage of electric steam traps lies in overcoming the response delay and energy inefficiency of traditional mechanical steam traps, achieving millisecond-level condensate discharge and virtually zero steam leakage through active electronic control. An intelligent control system dynamically adapts to load variations, improving thermal efficiency by over 20% compared to conventional traps while effectively eliminating water hammer and cavitation risks, extending service life by up to 3 times. These traps are specifically designed for high-performance steam systems requiring smart networking integration and precise temperature control (e.g., pharmaceutical cleanrooms, data center liquid cooling systems), serving as critical components for steam network digitalization and carbon neutrality initiatives.

Contact us

  • Specifications
  • Product Illustration
  • Model Description
  • Product Manual
Product Name Electric Steam Trap Valve
Model Number EC10Y
Nominal Diameter NPS 3/4" ~ 6" (DN15 ~ DN150)
Pressure Rating Class 150 ~ Class 4500 (PN16 ~ PN700)
Body Material A105, F22, F91, F92, F316L, F316H, F304
Bonnet Type Standard, Extended
Seal Material Metal-to-Metal Seal, Hard Alloy
Leakage Class ANSI Class IV
Medium Temperature -40℃ ~ 610℃
Connection Type Welded, Flanged
Trim Type Steam Trap
Control Accuracy ±0.1%
Actuation Type Electric Actuator
Power Supply Voltage 24 V, 110 V, 220 V, 380 V AC/DC (Optional)
Input Signal 4–20 mA or 1–5 V DC
Output Signal 4–20 mA DC
Protection Rating IP65
Explosion-Proof Rating Exd II BT4, Exd II BT6
Manual Override Handwheel
Ambient Temperature -25℃ ~ +70℃, -40℃ ~ +70℃
Ambient Humidity ≤95%
Control Mode On/Off Type (Two-Position Control), Modulating Type (4–20 mA Control)
Optional Accessories None (Standard Configuration)
Stroke (mm) 10, 16, 25, 40, 60, 100
Remarks Other special seal materials or temperature requirements can be customized according to customer specifications.
