EC10M
Electric Multi-Stage Control Valve (Labyrinth Type)
Design Features

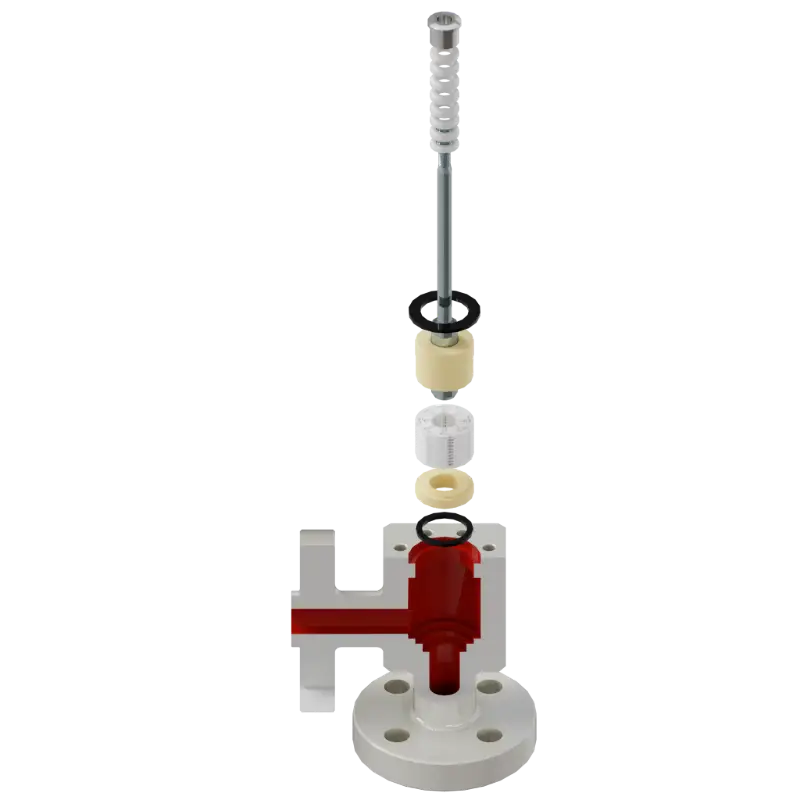

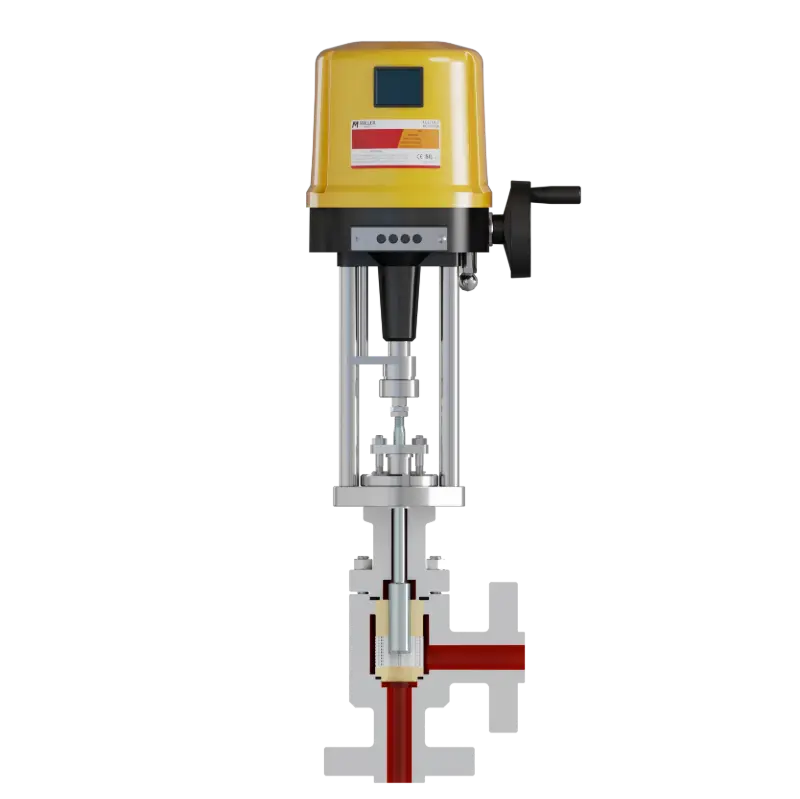

The electric labyrinth control valve employs a multi-stage labyrinth disc stack design, gradually dissipating fluid kinetic energy through right-angle turns and throttle orifices to achieve step-down pressure reduction. The valve plug is actuated by a precision electric actuator for precise opening control. Internal components are fabricated from hardened alloy materials to resist erosion from high-velocity media. The compact design eliminates compressed air dependency.
Contact us
| Product Name | Electric Multi-Stage Control Valve (Labyrinth Type) |
| Model Number | EC10M |
| Nominal Diameter | NPS 1/2" ~ 24" (DN15 ~ DN600) |
| Pressure Rating | Class 1500 ~ Class 2500 (PN250 ~ PN420) |
| Body Material | Carbon Steel (A), 304 Stainless Steel (S), 316 Stainless Steel (L), Inconel, Monel, Hastelloy, Ti, etc. |
| Bonnet Type | Standard, Extended |
| Seal Material | Metal Seat, Hard Alloy |
| Leakage Class | ANSI Class IV, V |
| Medium Temperature | -196℃ ~ 540℃ |
| Connection Type | Ferrule (0), Threaded (1), Welded (2), Wafer (3), Flanged (4) |
| Trim Type | Labyrinth-Type Control Valve |
| Control Accuracy | ±0.1% |
| Actuation Type | Electric Actuator |
| Power Supply Voltage | 24 V, 110 V, 220 V, 380 V AC/DC (Optional) |
| Input Signal | 4–20 mA or 1–5 V DC |
| Output Signal | 4–20 mA DC |
| Protection Rating | IP65 |
| Explosion-Proof Rating | Exd II BT4, Exd II BT6 |
| Manual Override | Handwheel |
| Ambient Temperature | -25℃ ~ +70℃, -40℃ ~ +70℃ |
| Ambient Humidity | ≤95% |
| Optional Accessories | None (Standard Configuration) |
| Stroke (mm) | 10, 16, 25, 40, 60, 100 |
| Remarks | Other special seal materials or temperature requirements can be customized according to customer specifications. |
