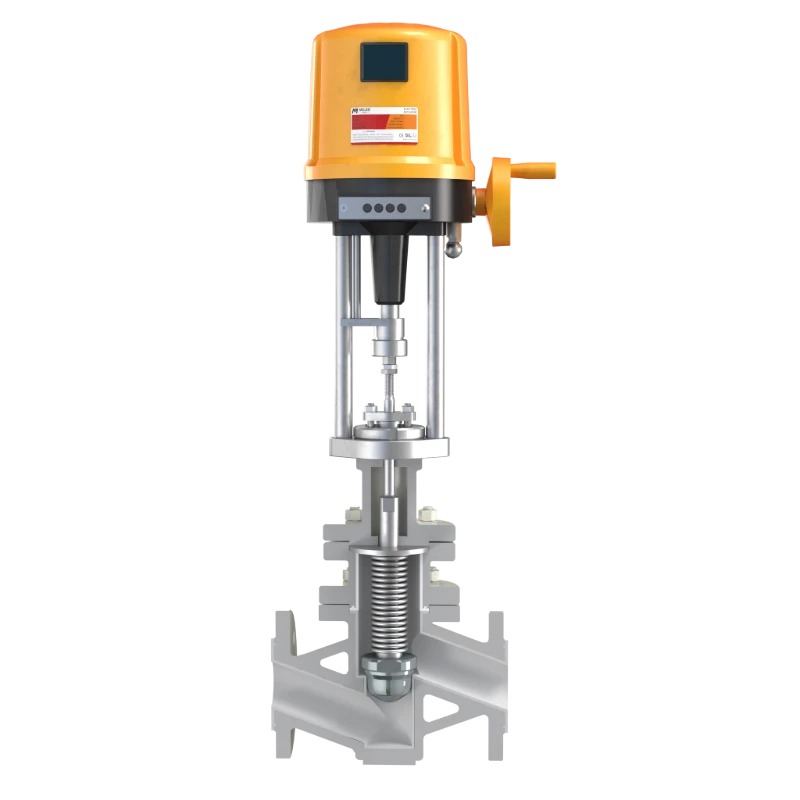

EC10F
Electric Lined Fluorine Control Valve
Design Features

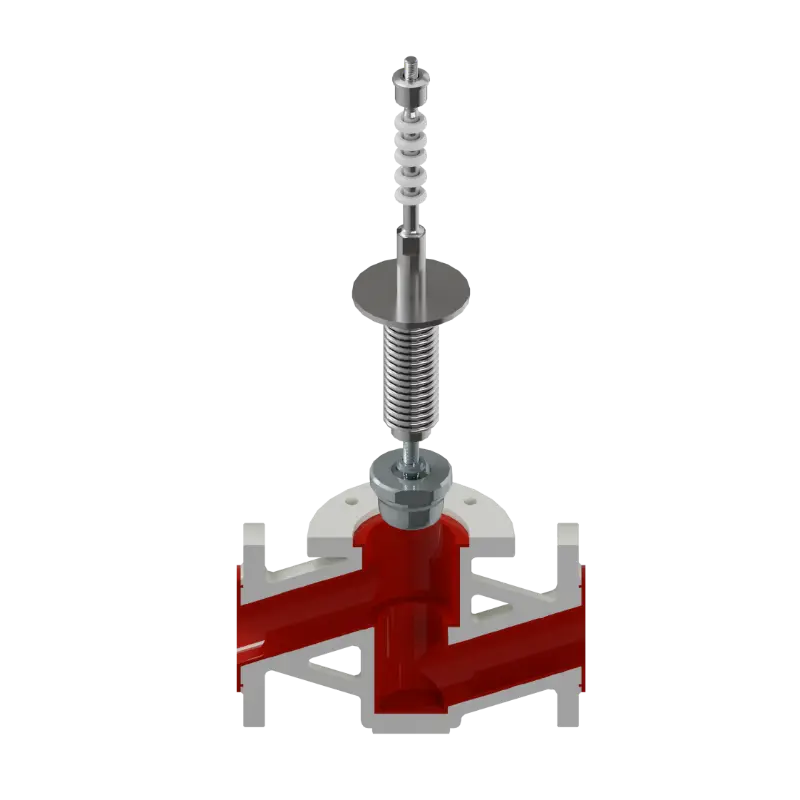

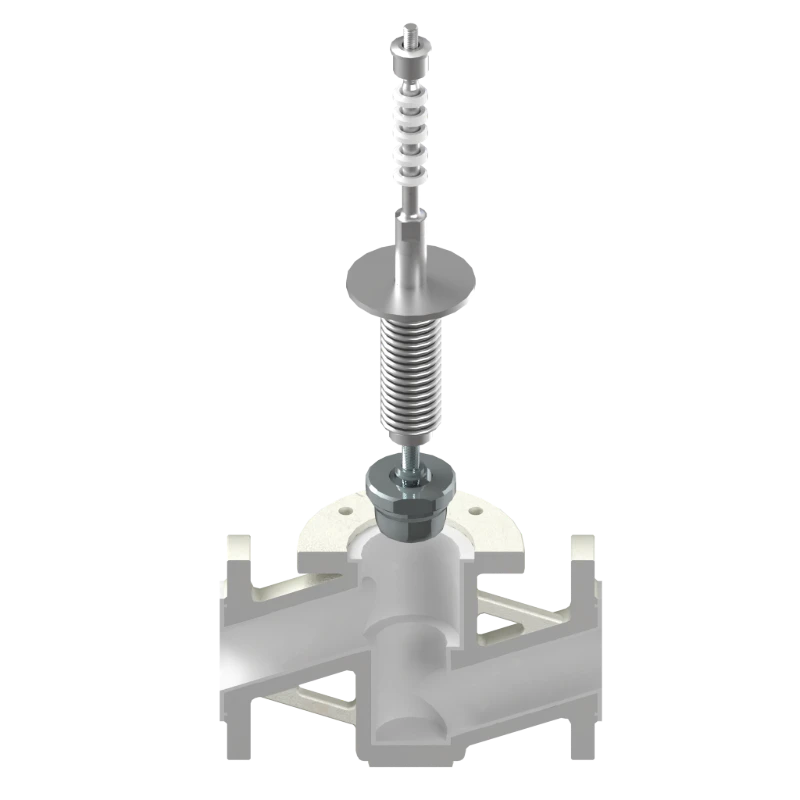

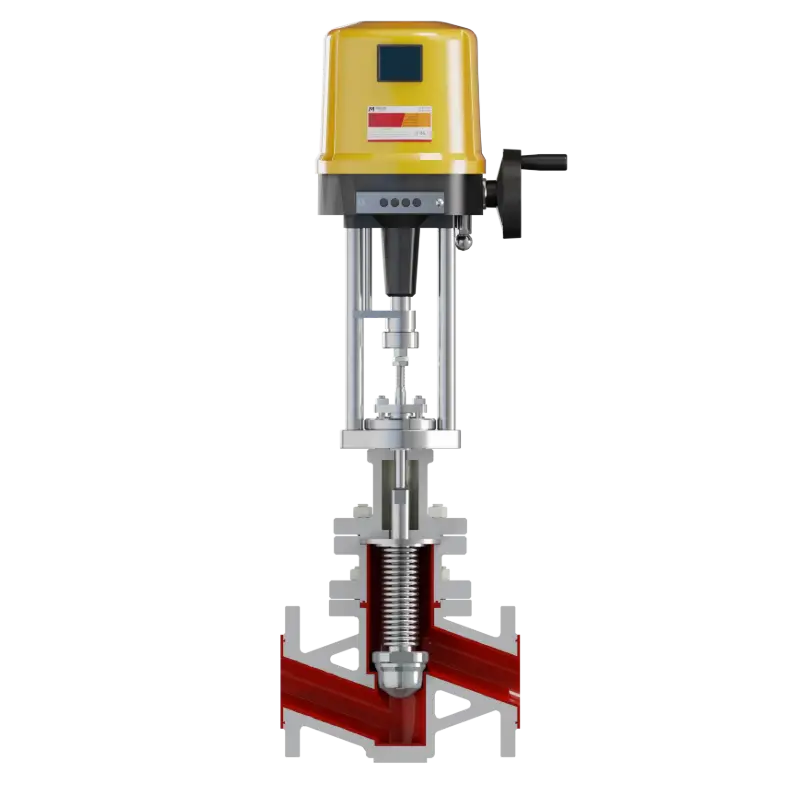

The electric fluoroplastic-lined control valve employs full-bore fluoroplastic lining technology (e.g., PTFE, PFA, or ETFE) for effective corrosion protection throughout the flow passage. It features a precision electric actuator for direct valve plug driving, eliminating compressed air dependency. The valve incorporates a double-sealing structure combining bellows seal and packing seal to effectively prevent external leakage. Internal components undergo special anti-corrosion treatment, specifically designed for highly corrosive media including strong acids, strong bases, and organic solvents.
Contact us
| Product Name | Electric Lined Fluorine Control Valve |
| Model Number | EC10F |
| Nominal Diameter | NPS 1/2" ~ 8" (DN15 ~ DN200) |
| Pressure Rating | Class 150 (PN10 ~ PN16) |
| Body Material | Carbon Steel (A), 304 Stainless Steel (S), 316 Stainless Steel (L), Inconel, Monel, Hastelloy, Ti, etc. |
| Lining Material | F46, PFA, PTFE |
| Bonnet Type | Standard, Bellows Seal |
| Seal Material | PTFE |
| Leakage Class | ANSI Class IV, V, VI |
| Medium Temperature | -40℃ ~ 200℃ |
| Connection Type | Flanged |
| Trim Type | Single-Seat Lined Fluorine Control Valve |
| Control Accuracy | ±0.1% |
| Actuation Type | Electric Actuator |
| Power Supply Voltage | 24 V, 110 V, 220 V, 380 V AC/DC (Optional) |
| Input Signal | 4–20 mA or 1–5 V DC |
| Output Signal | 4–20 mA DC |
| Protection Rating | IP65 |
| Explosion-Proof Rating | Exd II BT4, Exd II BT6 |
| Manual Override | Handwheel |
| Ambient Temperature | -25℃ ~ +70℃, -40℃ ~ +70℃ |
| Ambient Humidity | ≤95% |
| Optional Accessories | None (Standard Configuration) |
| Stroke (mm) | 10, 16, 25, 40, 60, 100 |
| Remarks | Other special seal materials or temperature requirements can be customized according to customer specifications. |
