KB50F

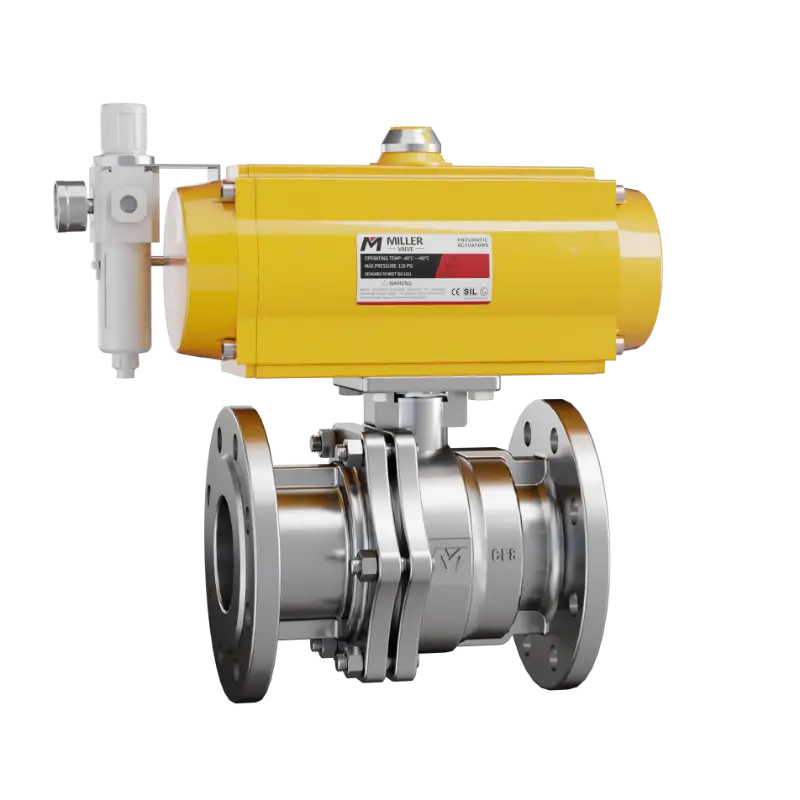

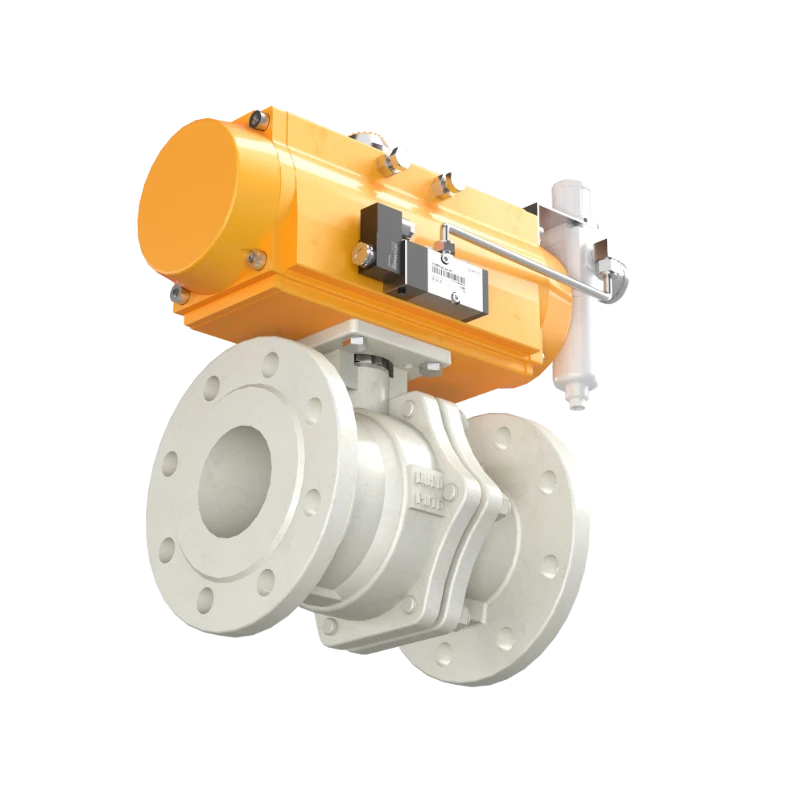

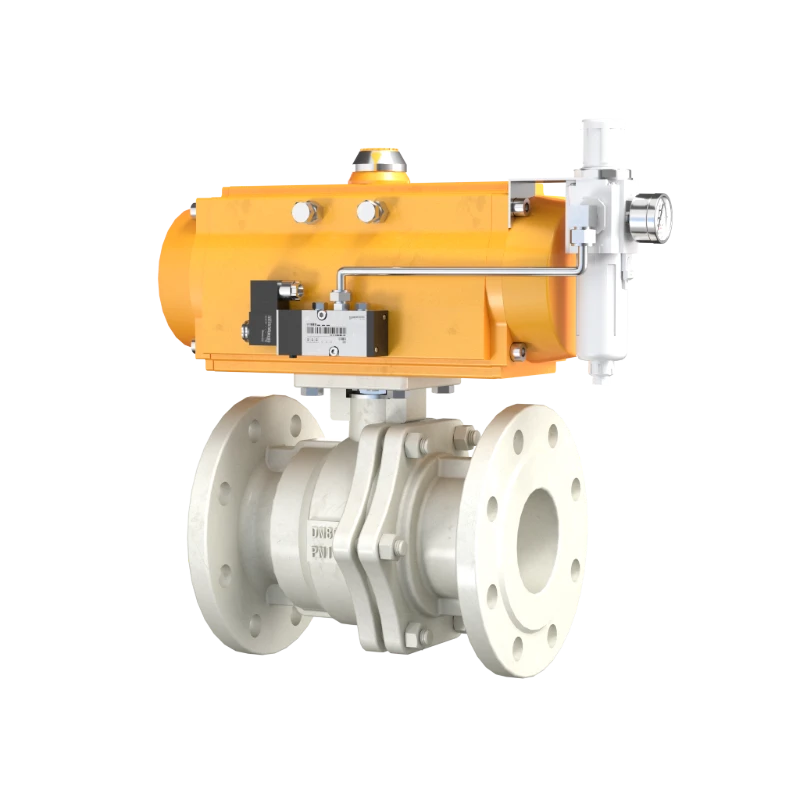

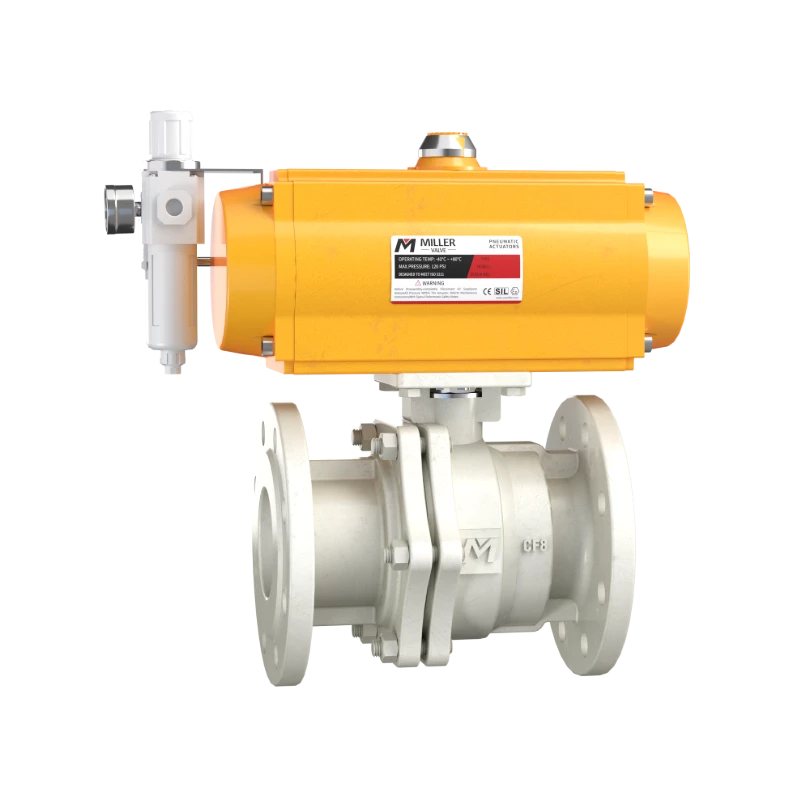

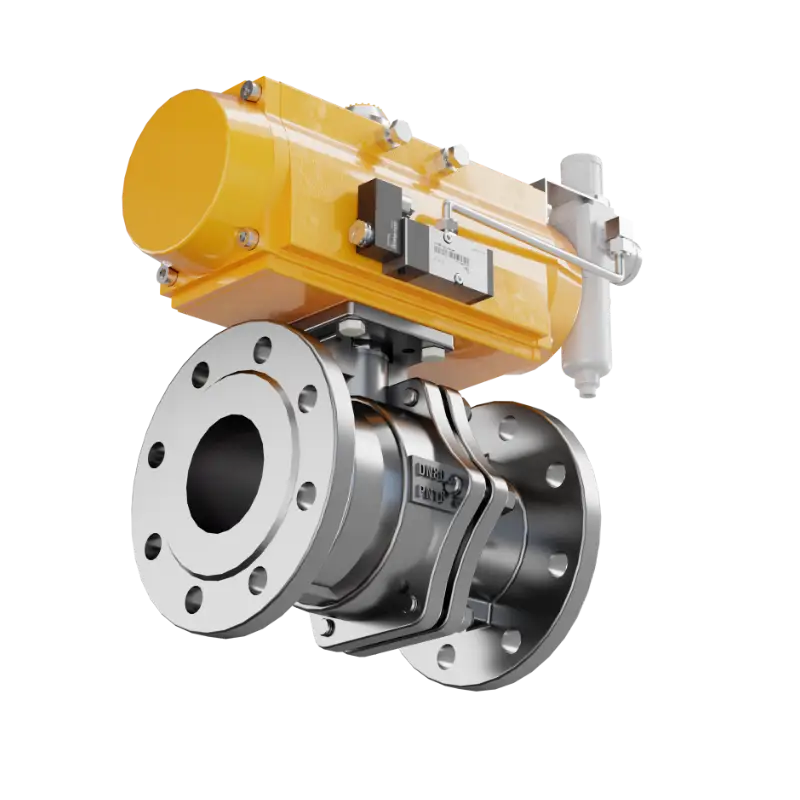

Pneumatic Floating Ball Valve
Design Features
The pneumatic floating ball valve features a floating ball mechanism where media pressure forces the ball against the seat for sealing. It is equipped with a precision pneumatic actuator (single-acting or double-acting) enabling rapid 90° angular stroke operation. The valve seat employs PTFE or metal spring-energized sealing, while the valve stem incorporates an anti-blowout stem design with V-ring packing seal to enhance safety and reliability.
Contact us
| Product Name | Pneumatic Floating Ball Valve |
| Model Number | KB50F |
| Nominal Diameter | NPS 1/2" ~ 8" (DN15 ~ DN200) |
| Pressure Rating | Class 150 ~ Class 300 (PN16 ~ PN50) |
| Body Material | Carbon Steel (A), 304 Stainless Steel (S), 316 Stainless Steel (L), Inconel, Monel, Hastelloy, Titanium (Ti), etc. |
| Seal Material | PTFE, Metal-to-Metal Seal, Hard Alloy |
| Leakage Class | ANSI Class IV |
| Medium Temperature | -196℃ ~ 420℃ |
| Connection Type | Flanged (Face-to-Face per ASME B16.10, End Flange per ASME B16.5) |
| Trim Type | Floating Ball (F) |
| Control Accuracy | ±0.1% |
| Actuation Type | Pneumatic Actuator |
| Air Supply Pressure | 400–800 kPa |
| Air Inlet Port | G1/4", G1/8", G3/8", G1/2" (BSPT Thread) |
| Pneumatic Actuator | Optional (Double-Acting or Spring-Return) |
| Control Mode | On/Off Type (Two-Position Control), Modulating Type (4–20 mA Control) |
| Single-Acting Actuator | Air-to-Open (Fail-Closed, FC), Air-to-Close (Fail-Open, FO) |
| Double-Acting Actuator | Air-to-Open / Air-to-Close (Fail-Locked, FL) |
| Optional Accessories | Positioner, Air Filter Regulator, Lock-up Valve, Limit Switch Box, Valve Position Transmitter, Handwheel Operator, Solenoid Valve |
| Stroke (°) | 0° ~ 90° |
| Remarks | Other special seal materials or temperature requirements can be customized according to customer specifications. |
