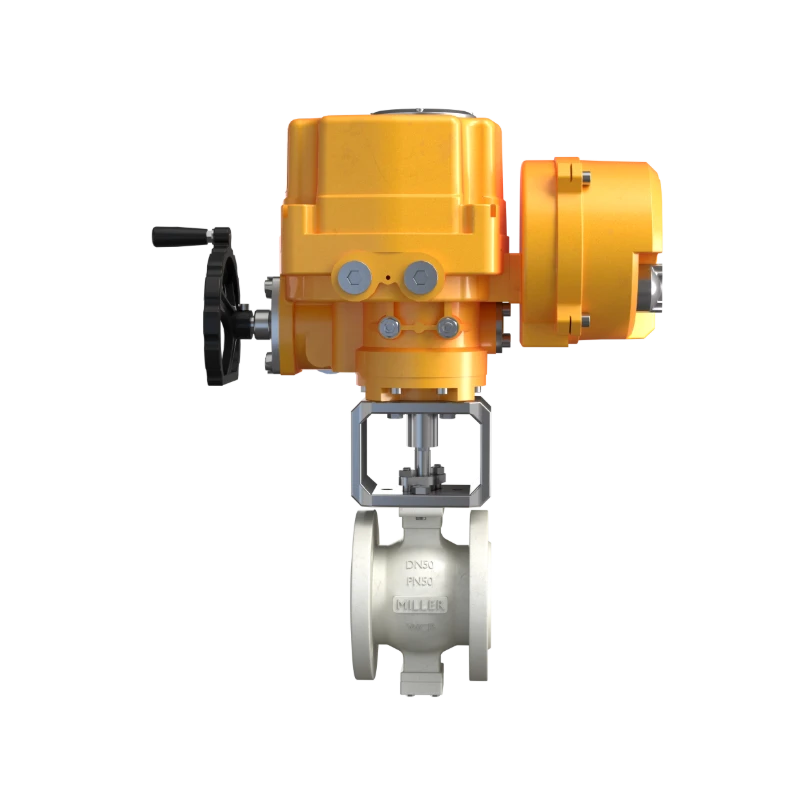

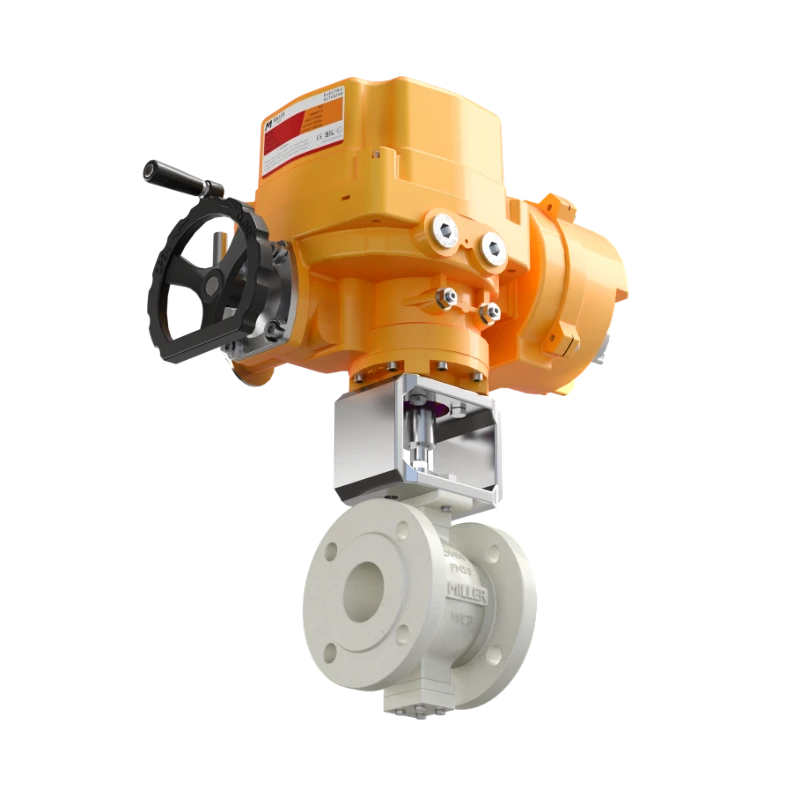

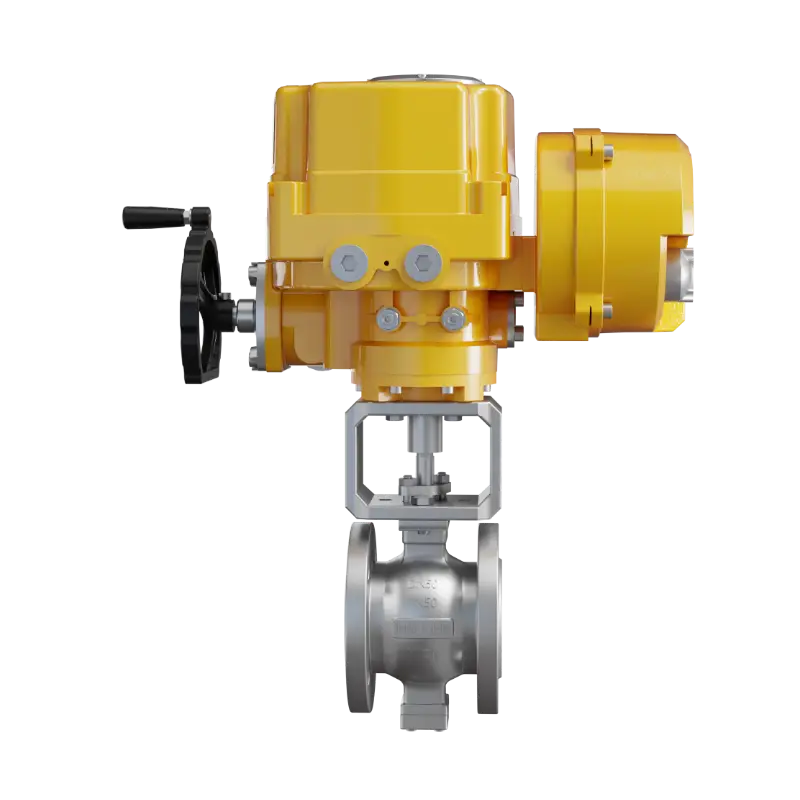

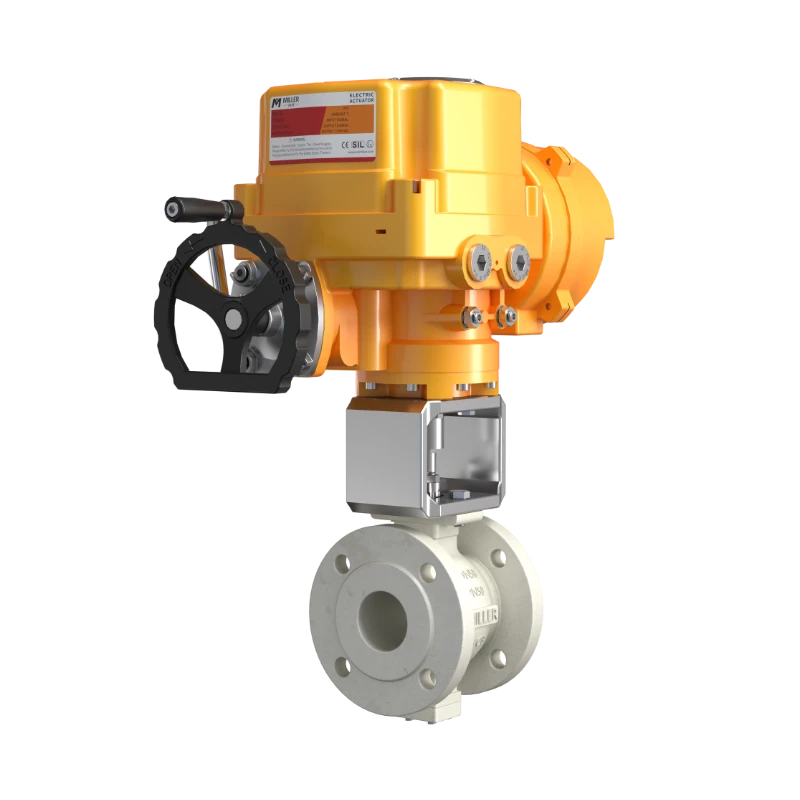

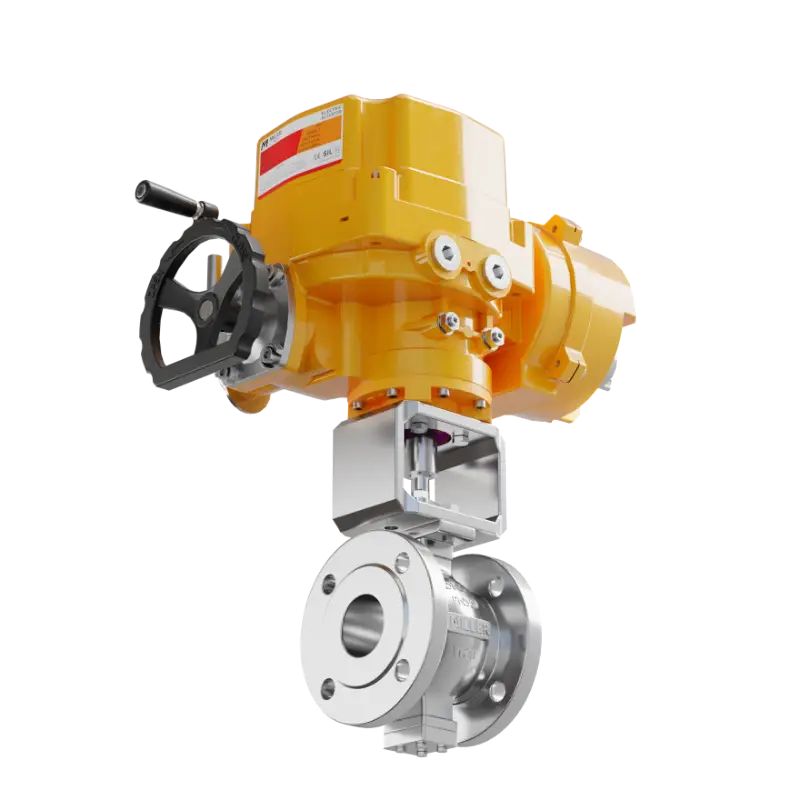

EB50V
Electric V-Port Ball Valve
Design Features
The electric V-port ball valve features a V-shaped notched ball core mechanism for precise equal percentage flow regulation. It is equipped with a high-precision electric actuator supporting 4-20mA signal control and position feedback. The valve seat utilizes hardened sealing or reinforced PTFE materials, combining tight shutoff with shear resistance for fibrous media. The valve body flow passage adopts a clog-resistant design to prevent fiber and particulate accumulation.
Contact us
| Product Name | Electric V-Port Ball Valve |
| Model Number | EB50V |
| Nominal Diameter | NPS 1" ~ 20" (DN25 ~ DN500) |
| Pressure Rating | Class 150 ~ Class 600 (PN10 ~ PN63) |
| Body Material | WCB, CF8, CF8M, CF3M |
| Seal Material | PTFE, Metal-to-Metal Seal, Hard Alloy (Stellite or Tungsten Carbide) |
| Leakage Class | ANSI Class VI (Zero Leakage) |
| Medium Temperature | -29°C ~ 250°C |
| Connection Type | Lug Type (3), Flanged (4) per ASME B16.1 / B16.5 |
| Trim Configuration | V-Notch (V-Port) Ball |
| Control Accuracy | ±0.1% |
| Actuation Type | Electric Actuator |
| Power Supply Voltage | 24 VAC/VDC, 220 VAC, 380 VAC (Single/Three Phase) |
| Input Signal | 4–20 mA DC or 1–5 V DC |
| Output Signal | 4–20 mA DC (Position Feedback) |
| Protection Rating | IP67 (Dust-tight & Immersion up to 1m) |
| Explosion Protection | Exd II BT4 (Flameproof Enclosure) |
| Manual Override | Handwheel / Manual Lever |
| Ambient Temperature | -25°C ~ +70°C, -40°C ~ +70°C (Optional Low-Temp Kit) |
| Ambient Humidity | ≤95% RH (Non-condensing) |
| Control Mode | On/Off Type (Two-Position Control), Modulating Type (4–20 mA Control) |
| Optional Accessories | Positioner, Air Filter Regulator, Lock-up Valve, Limit Switch Box, Position Transmitter, Handwheel Extension, Solenoid Valve, Heater, Rain Hood |
| Stroke (°) | 0° ~ 90° |
| Remarks | Other special seal materials or temperature requirements can be customized according to customer specifications. |
