EB50D

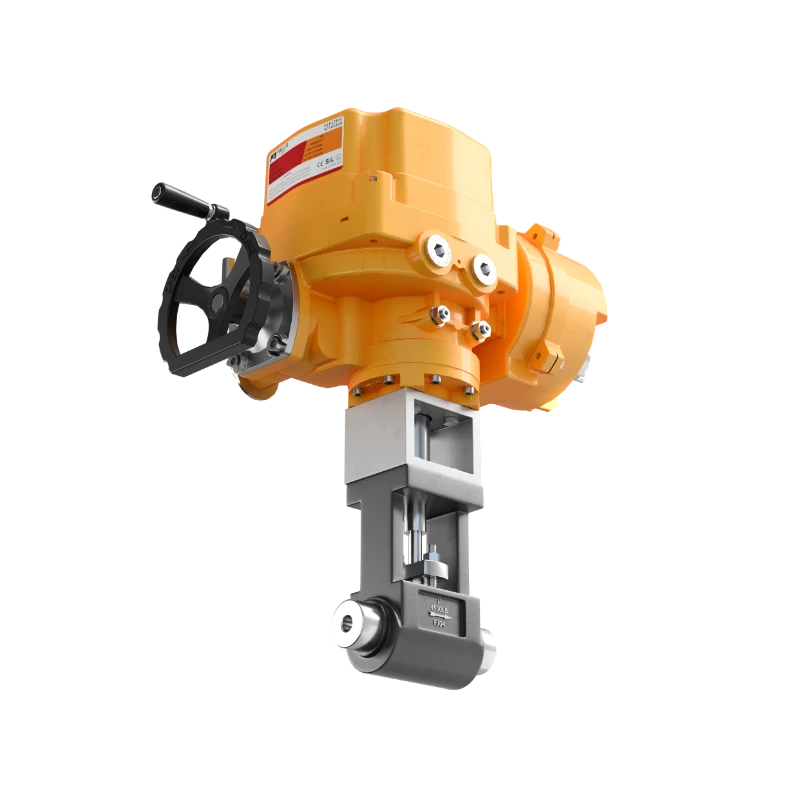

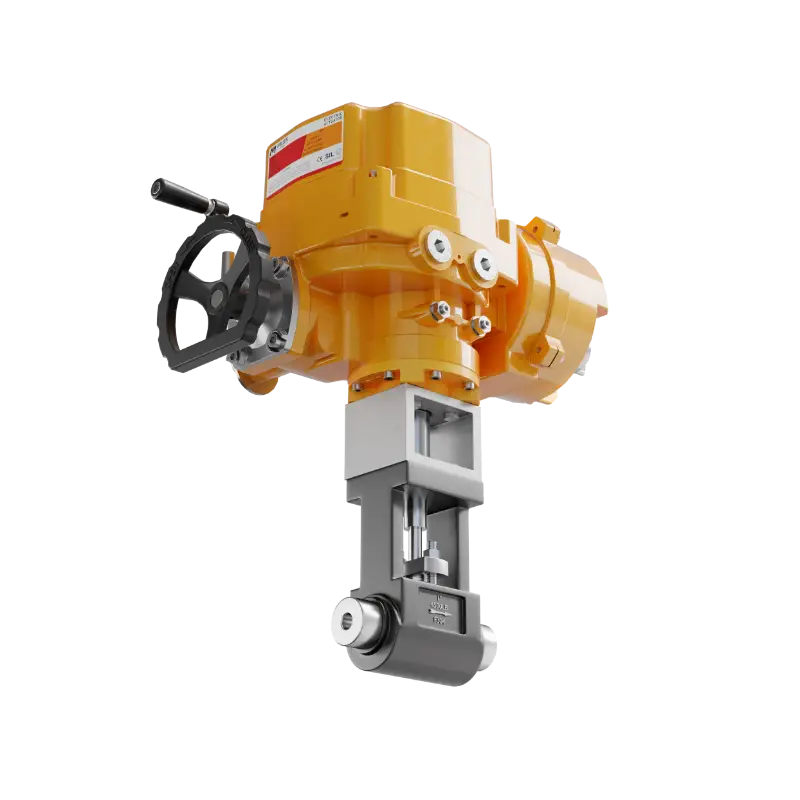

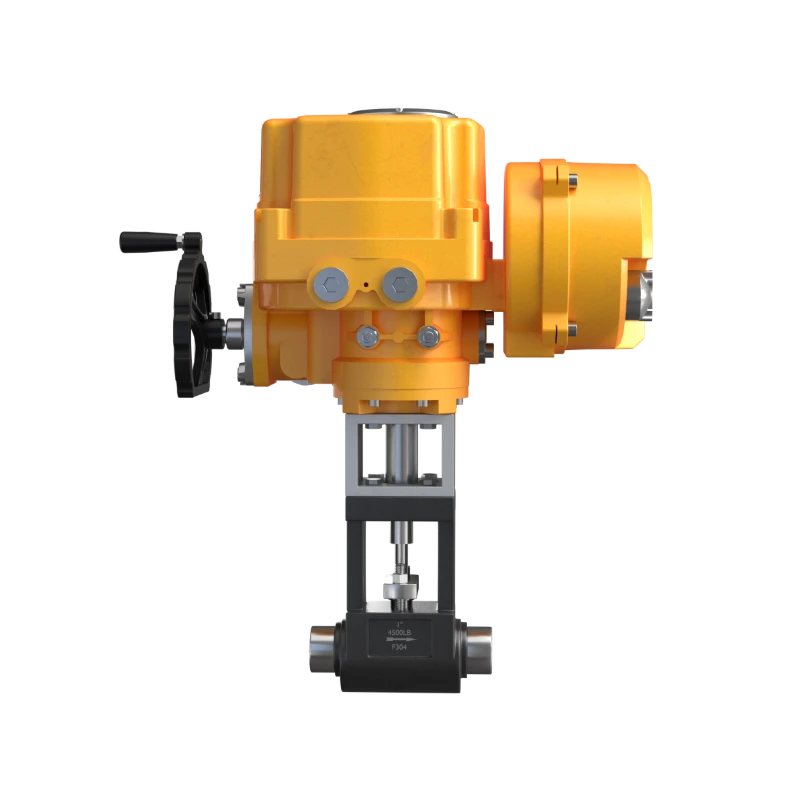

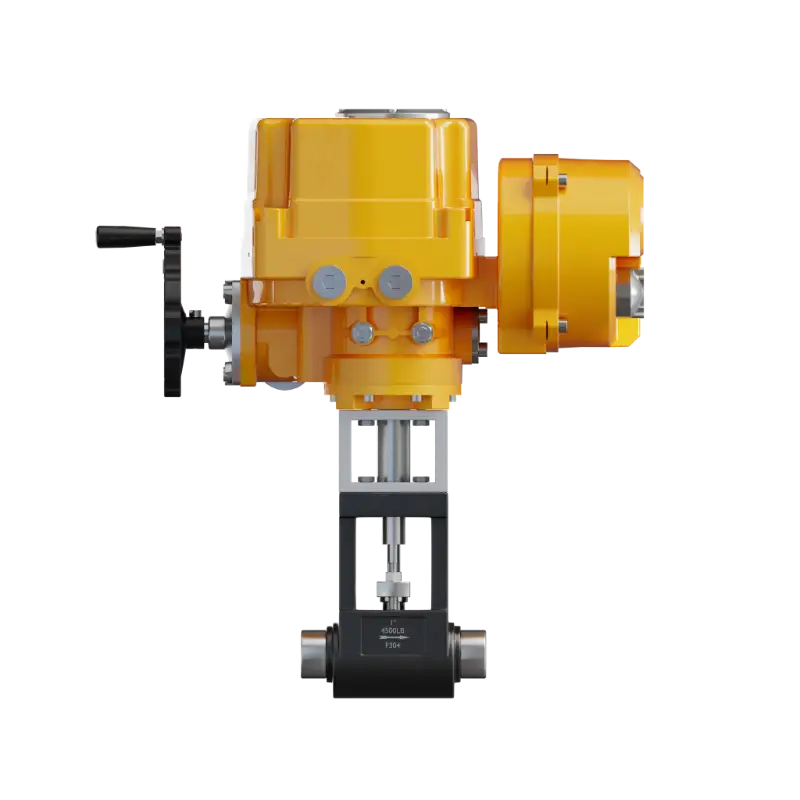

Electric Drainage Ball Valve
Design Features
The electric steam trap ball valve features a floating ball mechanism and steam-specific valve seat design, enabling rapid 90° on/off actuation via an electric actuator. The valve body undergoes anti-cavitation hardened treatment with streamlined drainage port flow paths to ensure high-flow condensate discharge, while integrating thermal compensation sealing to compensate for temperature fluctuations. It is equipped with 4-20mA signal control and Modbus communication capabilities for intelligent operation.
Contact us
| Product Name | Electric Drainage Ball Valve |
| Model Number | EB50D |
| Nominal Diameter | NPS 3/4" ~ 4" (DN15 ~ DN100) |
| Pressure Rating | Class 150 ~ Class 4500 (PN16 ~ PN750) |
| Body Material | A105, F22, F91, F92, F316L, F316H, F304 |
| Seal Material | Metal-to-Metal Seal, Hard Alloy (Stellite or Tungsten Carbide) |
| Leakage Class | ANSI Class VI (Zero Leakage) |
| Medium Temperature | -40°C ~ 650°C |
| Connection Type | Butt-Weld (ASME B16.25) |
| Trim Configuration | Drain Port Design (Bottom Outlet for Blowdown) |
| Control Accuracy | ±0.1% |
| Actuation Type | Electric Actuator |
| Power Supply Voltage | 24 VAC/VDC, 220 VAC, 380 VAC (Single/Three Phase) |
| Input Signal | 4–20 mA DC or 1–5 V DC |
| Output Signal | 4–20 mA DC (Position Feedback) |
| Protection Rating | IP67 (Dust-tight & Immersion up to 1m) |
| Explosion Protection | Exd II BT4 (Flameproof Enclosure) |
| Manual Override | Handwheel / Manual Lever |
| Ambient Temperature | -25°C ~ +70°C, -40°C ~ +70°C (Optional Low-Temp Kit) |
| Ambient Humidity | ≤95% RH (Non-condensing) |
| Control Mode | On/Off Type (Two-Position Control), Modulating Type (4–20 mA Control) |
| Optional Accessories | Positioner, Air Filter Regulator, Lock-up Valve, Limit Switch Box, Position Transmitter, Handwheel Extension, Solenoid Valve, Heater, Rain Hood |
| Stroke (°) | 0° ~ 90° |
| Remarks | Other special seal materials or temperature requirements can be customized according to customer specifications. |
