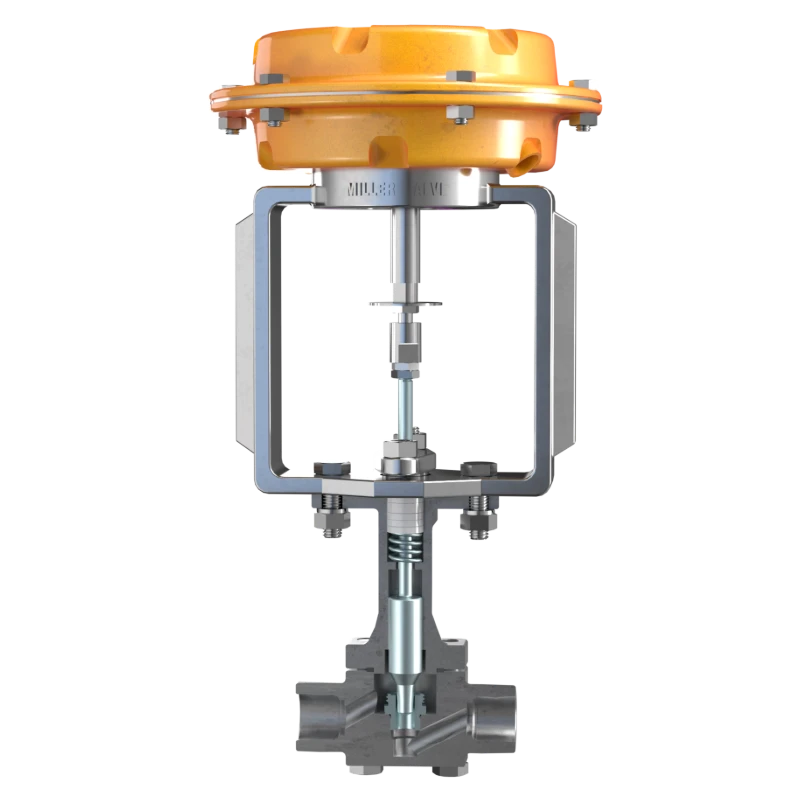

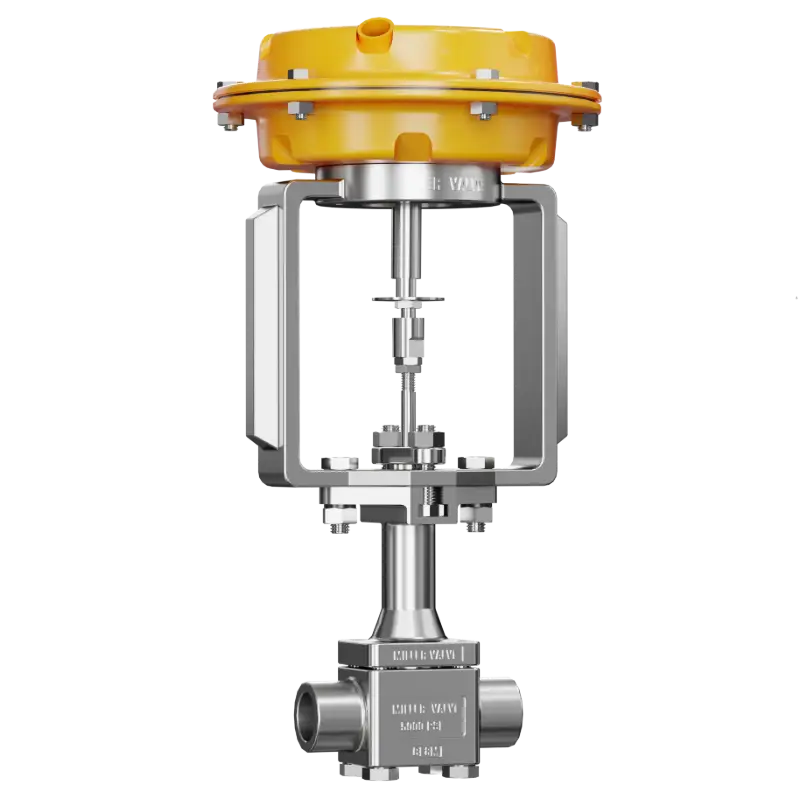

KC10V
Pneumatic Mini-Flow Control Valve
Design Features
American Miller Pneumatic Low-flow Control Valve
Engineered for precise micro-flow control with V-port trim and cage-guided design (0.1-5m³/h range). Features forged steel construction and hardened internals for erosion resistance. Precision pneumatic actuator ensures accurate regulation at minimal flows. Ideal for laboratory, chemical, and pharmaceutical applications requiring reliable low-flow control.
Contact us
| Product Name | Pneumatic Mini-Flow Control Valve |
| Model Number | KC10V |
| Nominal Diameter | NPS 1/2" ~ 1" (DN15 ~ DN25) |
| Pressure Rating | 5000 PSI (35 MPa) |
| Body Material | 316 Stainless Steel (L), Inconel, Monel, Hastelloy, Ti, etc. |
| Bonnet Type | Standard, Extended, Cryogenic, Bellows Seal |
| Seal Material | PTFE, Metal Seat, Hard Alloy |
| Leakage Class | ANSI Class IV, V |
| Medium Temperature | -196℃ ~ 540℃ |
| Connection Type | Compression Fitting (0), Threaded (1), Welded (2), Wafer (3), Flanged (4) |
| Trim Type |
Single-Port Control Valve (P) |
| Control Accuracy | ±0.1% |
| Actuation Type | Pneumatic Diaphragm Actuator |
| Supply Pressure | 400–800 kPa |
| Air Supply Port | RC1/4 |
| Pneumatic Actuator | Optional |
| Action Type | Fail Open (FO) – Air-to-Close (B); Fail Closed (FC) – Air-to-Open (K) |
| Optional Accessories | Positioner, Air Filter Regulator, Lock-up Valve, Limit Switch, Position Switch, Handwheel, etc. |
| Stroke (mm) | 16 |
| Remarks | Other special seal materials or temperature requirements can be customized according to customer specifications. |
