EBC10P
Electric Bellows Seal Control Valve
Design Features

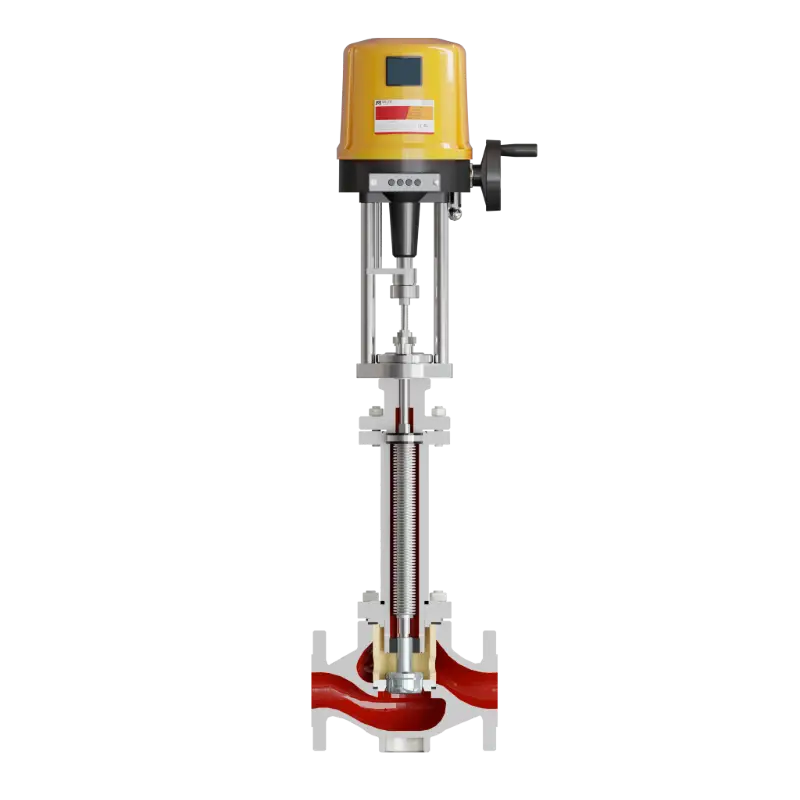

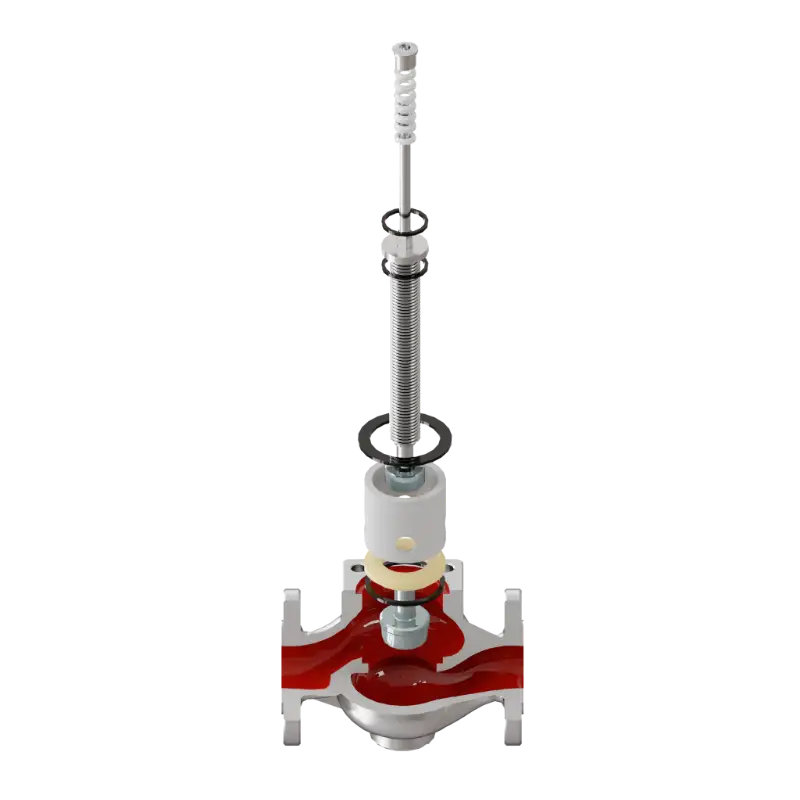

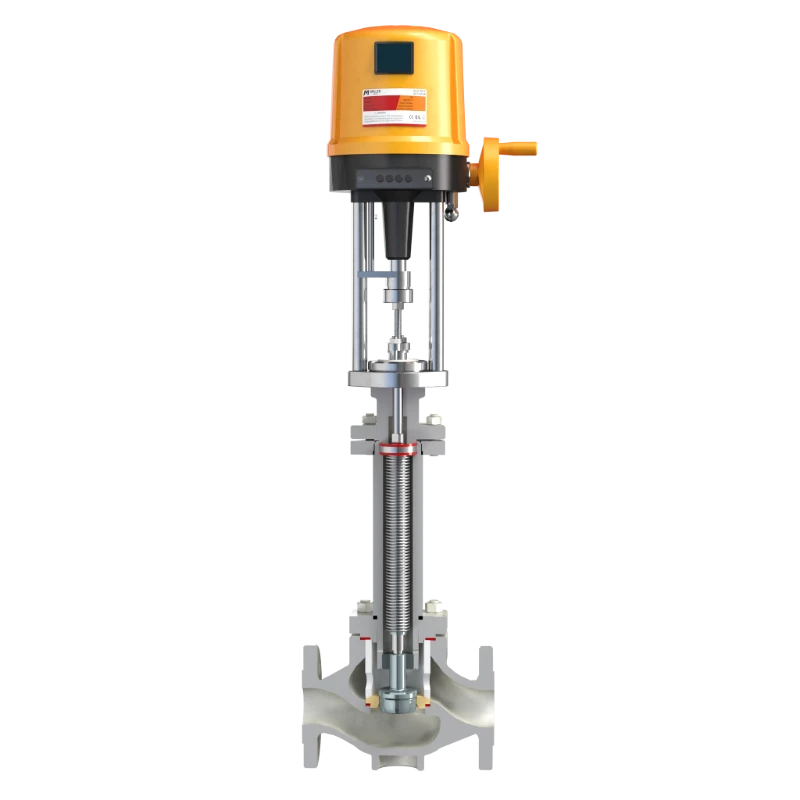

The electric bellows-sealed single-seat control valve employs a metal bellows seal assembly to replace traditional packing glands, achieving dynamic sealing. The actuator features an integrated electronic structure with built-in servo amplifier, utilizing a single trim and seat design for tight shutoff and virtually zero leakage. The plug adopts top-guided architecture with a streamlined flow path, reducing pressure drop while maximizing flow capacity. This design ensures virtually zero external leakage, making it ideal for highly toxic, flammable, volatile, and precious metal media applications. It delivers high-precision control with superior flow characteristic conformity to IEC 534 standards.
Contact us
| Product Name | Electric Bellows Seal Control Valve |
| Model Number | EBC10P |
| Nominal Diameter | NPS 1/2" ~ 8" (DN15 ~ DN200) |
| Pressure Rating | Class 150 ~ Class 300 (PN16 ~ PN50) |
| Body Material | Carbon Steel (A), 304 Stainless Steel (S), 316 Stainless Steel (L), Inconel, Monel, Hastelloy, Titanium (Ti), etc. |
| Bonnet Type | Standard, Extended, Cryogenic, Bellows Seal, Jacketed (Thermal Insulation) |
| Seal Material | PTFE, Metal-to-Metal Seal, Hard Alloy (Stellite or Tungsten Carbide) |
| Leakage Class | ANSI Class IV, V, or VI (Bubble-tight) |
| Medium Temperature | -196°C ~ 540°C |
| Connection Type | Compression Fitting, Threaded (NPT/BSP), Butt-Welded, Flanged (ASME B16.5) |
| Trim Configuration | Globe-Type Single-Seat Trim |
| Control Accuracy | ±0.1% |
| Actuation Type | Electric Actuator |
| Power Supply Voltage | 24 VAC/DC, 110 VAC, 220 VAC, 380 VAC (Single/Three Phase) |
| Input Signal | 4–20 mA DC or 1–5 V DC |
| Output Signal | 4–20 mA DC (Position Feedback) |
| Protection Rating | IP65 (Dust-tight & Low-pressure Water Jet Resistant) |
| Explosion Protection | Exd II BT4, Exd II BT6 (Flameproof Enclosure) |
| Manual Override | Handwheel / Manual Lever |
| Ambient Temperature | -25°C ~ +70°C, -40°C ~ +70°C (Optional Low-Temp Kit) |
| Ambient Humidity | ≤95% RH (Non-condensing) |
| Action Type | Linear Modulating (Air-to-Open / Air-to-Close equivalent via electric signal) |
| Optional Accessories | Digital Positioner, Solenoid Valve, Limit Switch Box, Position Transmitter, Air Filter Regulator (for auxiliary control), Handwheel Extension, Heater Jacket Controller |
| Stroke (mm) | 10, 16, 25, 40, 60, 100 mm |
| Remarks | Other special seal materials or temperature requirements can be customized according to customer specifications. |
