KC10G

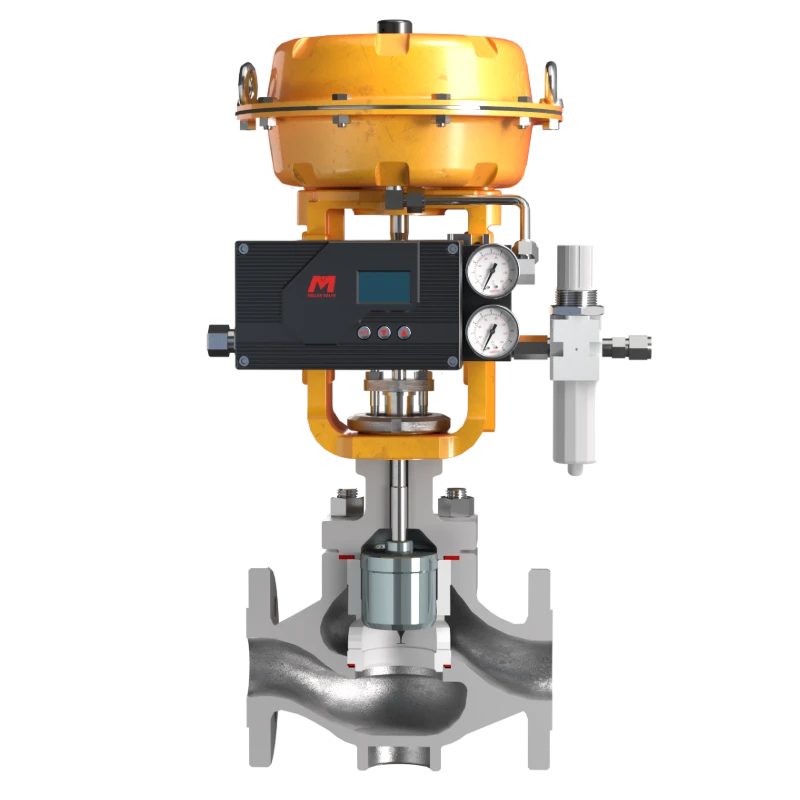

Pneumatic Double-Seat Control Valve
Design Features
The core advantage of pneumatic double-seat control valves lies in their high pressure handling capability and large-flow control performance. These valves operate stably under high-pressure differentials while requiring reduced actuator thrust. However, their inherent design introduces a known limitation—higher leakage rates during closure. Thus, they are particularly suitable for applications with high pressure differentials, high flow rates, and less stringent tightness requirements.
Contact us
| Product Name | Pneumatic Double-Seat Control Valve |
| Model Number | KC10G |
| Nominal Diameter | NPS 1/2" ~ 24" (DN15 ~ DN600) |
| Pressure Rating | Class 150 ~ Class 600 (PN16 ~ PN100) |
| Body Material | Carbon Steel (A), 304 Stainless Steel (S), 316 Stainless Steel (L), Inconel, Monel, Hastelloy, Ti, etc. |
| Bonnet Type | Standard, Cryogenic, Bellows Seal, Extended |
| Seal Material | PTFE, Metal Seat, Hard Alloy |
| Leakage Class | ANSI Class IV, VI |
| Medium Temperature | -40℃ ~ 540℃ |
| Connection Type | Threaded (1), Welded (2), Flanged (4) |
| Trim Type |

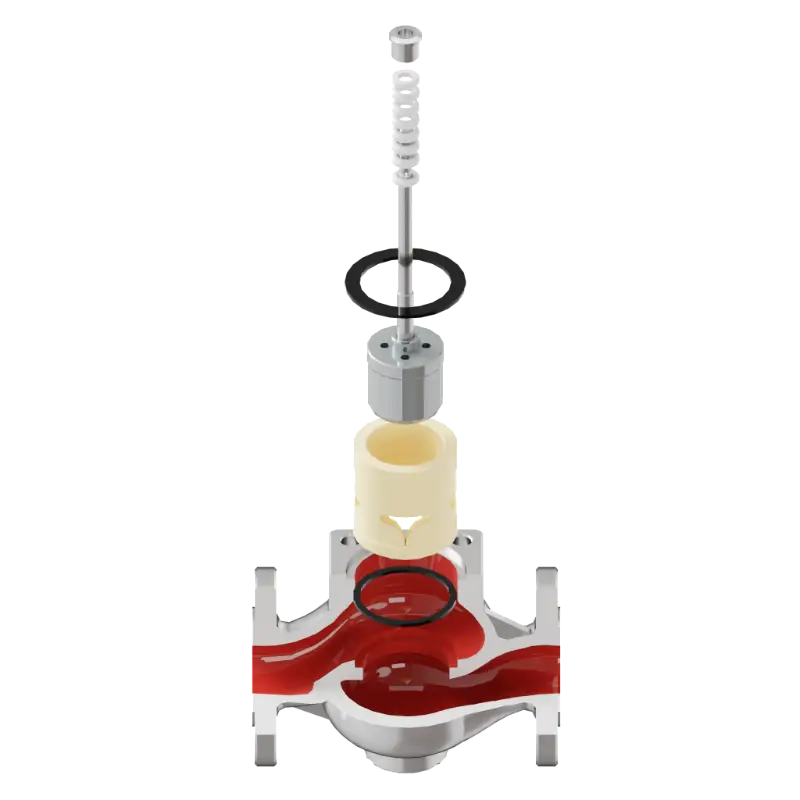

Double-Seat Cage Control Valve (G) |
| Control Accuracy | ±0.1% |
| Actuation Type | Pneumatic Diaphragm Actuator |
| Supply Pressure | 200–400 kPa |
| Air Supply Port | RC1/4 |
| Pneumatic Actuator | Optional |
| Action Type | Fail Open (FO) – Air-to-Close (B); Fail Closed (FC) – Air-to-Open (K) |
| Optional Accessories | Positioner, Air Filter Regulator, Lock-up Valve, Limit Switch, Position Transmitter, Handwheel, etc. |
| Stroke (mm) | 10, 16, 25, 40, 60, 100 |
| Remarks | Other special seal materials or temperature requirements can be customized according to customer specifications. |
