KC10Y

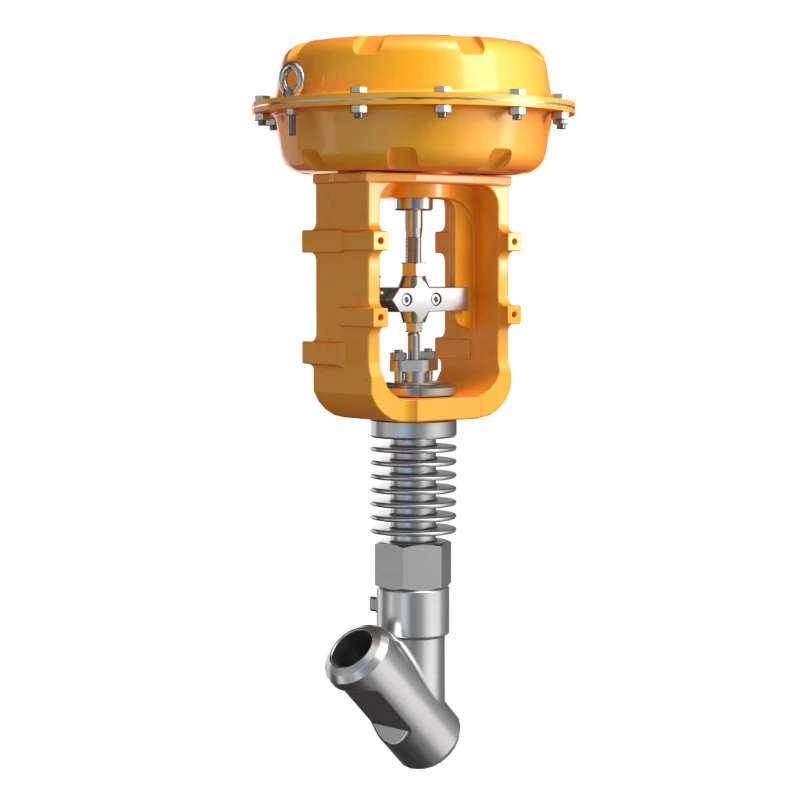

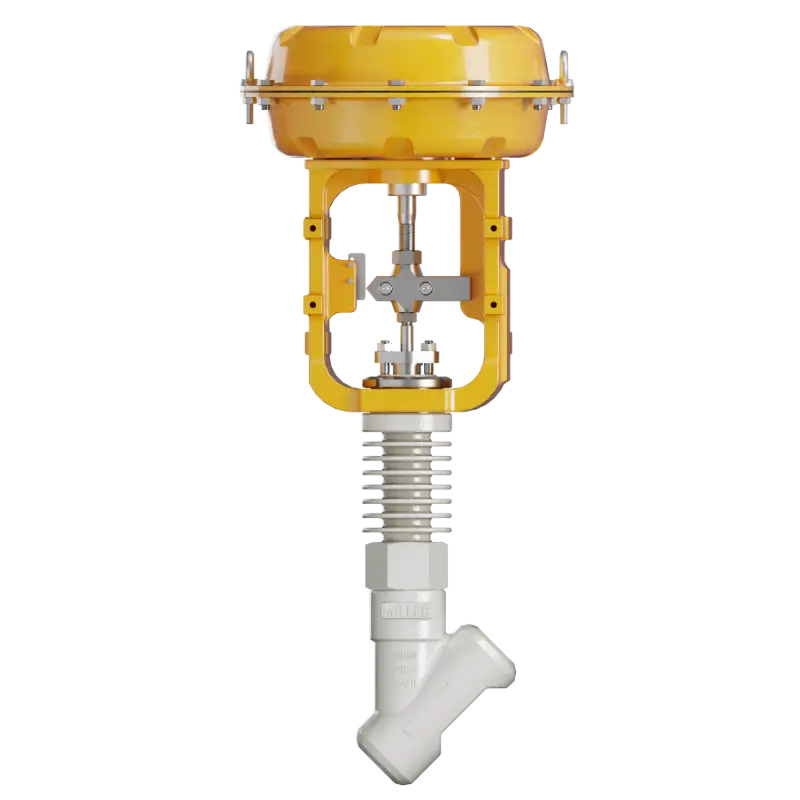

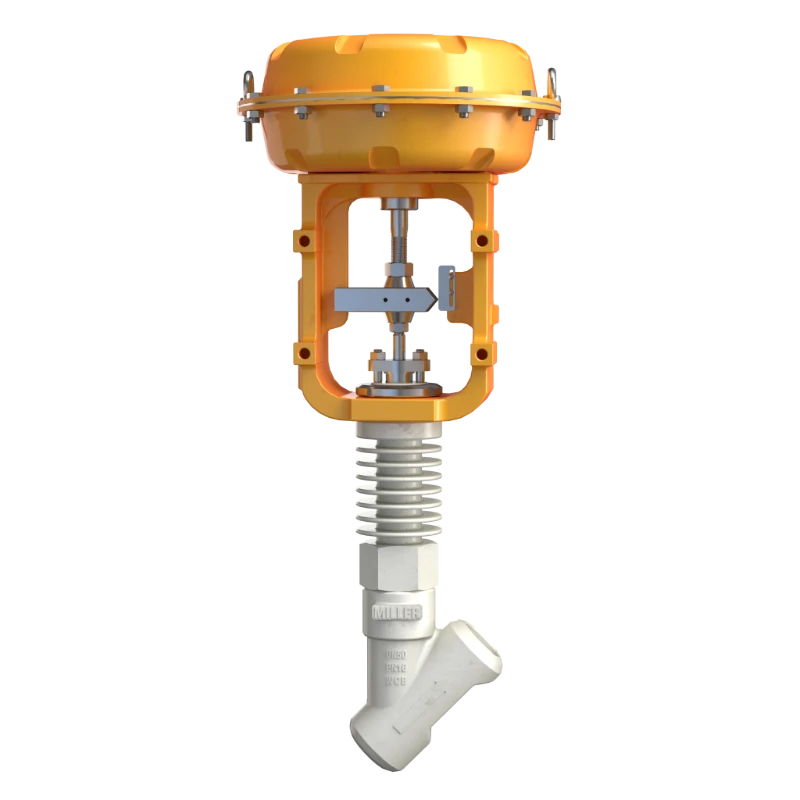

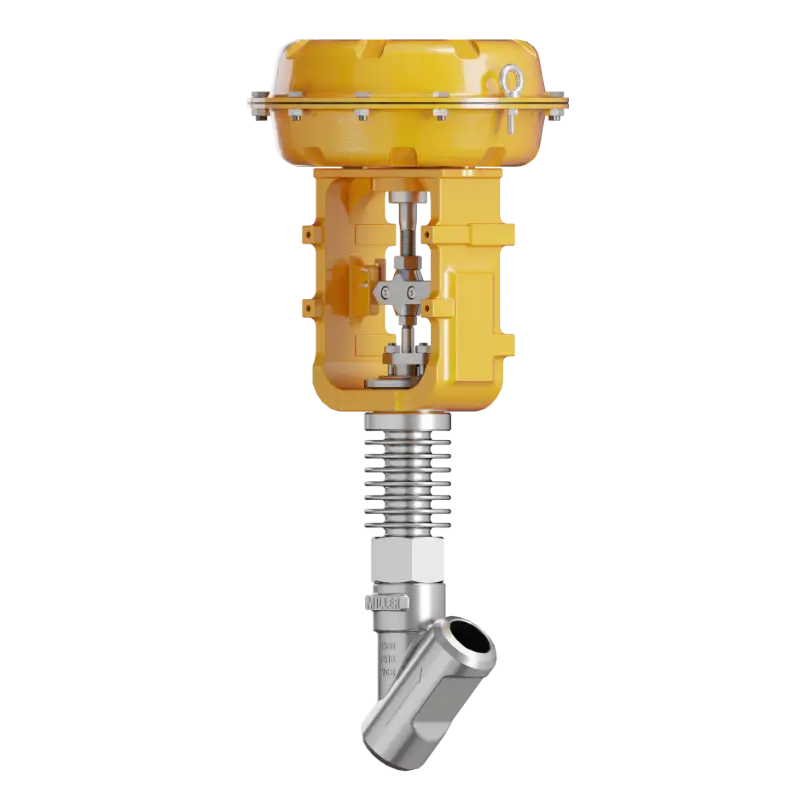

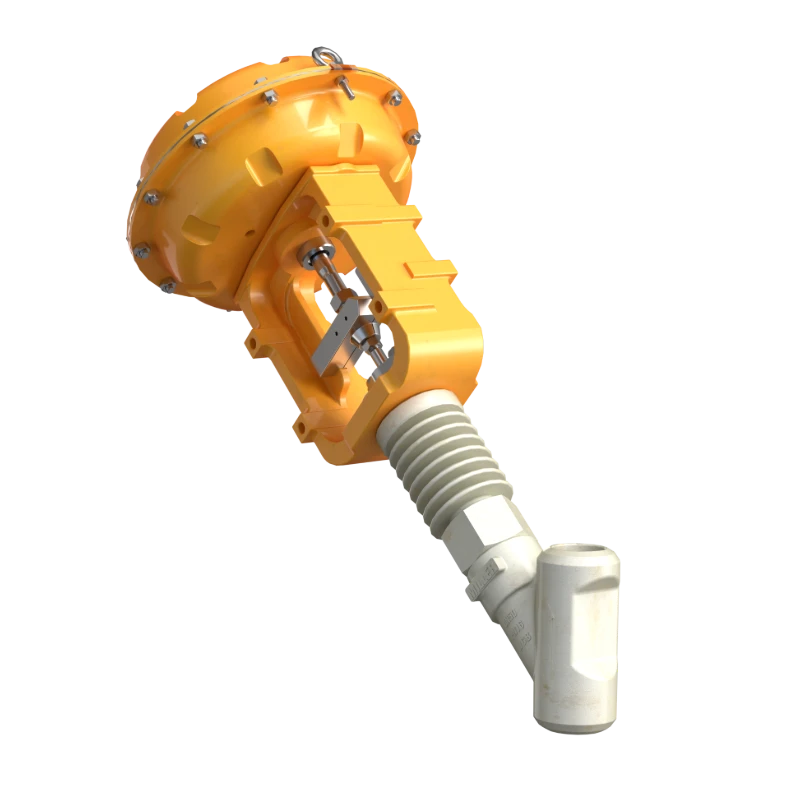

Pneumatic Steam Trap Valve
Design Features
The core advantage of pneumatic steam traps is overcoming flow and response limitations of traditional thermodynamic and mechanical traps through active pneumatic control, achieving rapid drainage response and precise liquid level management. Their zero-leakage design improves thermal energy utilization efficiency, minimizing equipment performance degradation and pipeline shock from condensate accumulation. Simultaneously, their high resistance to water hammer and cavitation extends service life significantly, making them ideal for high-pressure steam mains, large-scale heat exchangers, and industrial applications requiring interlocked control. This technology is critical for achieving energy efficiency and automated operation in steam systems.
Contact us
| Product Name | Pneumatic Steam Trap Valve |
| Model Number | KC10Y |
| Nominal Diameter | NPS 3/4" ~ 16" (DN20 ~ DN150) |
| Pressure Rating | Class 150 ~ Class 4500 (PN16 ~ PN700) |
| Body Material | A105, F22, F91, F92, F316L, F316H, F304 |
| Bonnet Type | Standard (Typical for Y-Type Trap Design) |
| Seal Material | PTFE, Metal Seat, Hard Alloy |
| Leakage Class | ANSI Class IV, V, or VI |
| Medium Temperature | -40℃ ~ 610℃ |
| Connection Type | Welded (2), Flanged (4) |
| Trim Type | Steam Trap (Y-Type) |
| Control Accuracy | ±0.1% |
| Actuation Type | Pneumatic Actuator |
| Supply Pressure | 200–300 kPa |
| Air Supply Port | RC1/4 |
| Pneumatic Actuator | Optional |
| Action Type | On-Off Control (Two-Position), Modulating Control (4–20 mA) |
| Optional Accessories | Positioner, Air Filter Regulator, Lock-up Valve, Limit Switch, Position Transmitter, Handwheel, etc. |
| Stroke (mm) | 10, 16, 25, 40, 60, 100 |
| Remarks | Other special seal materials or temperature requirements can be customized according to customer specifications. |
