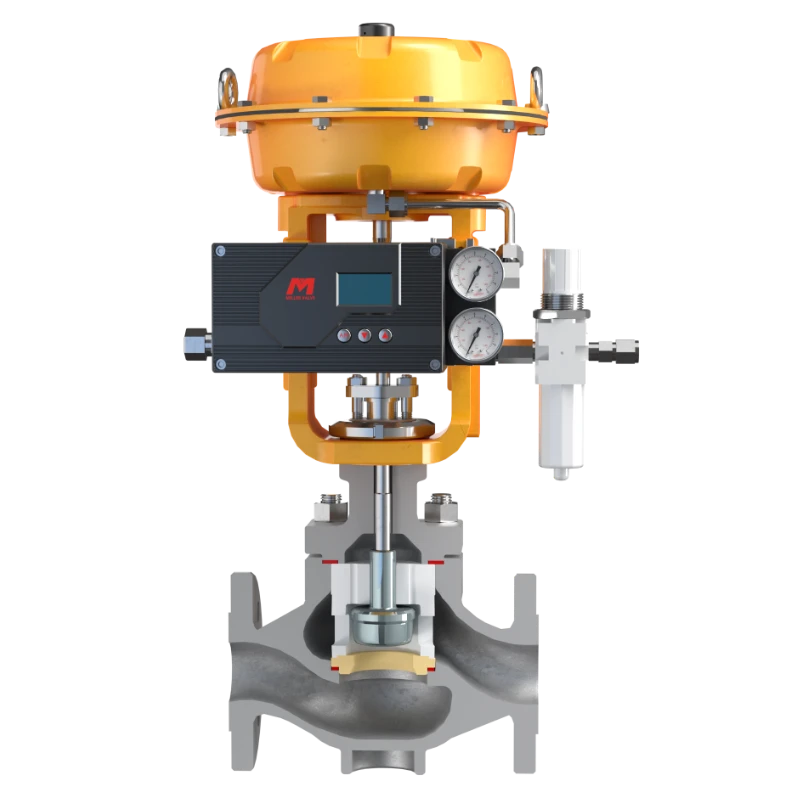

KC10P
Pneumatic Single-Port Control Valve
Design Features

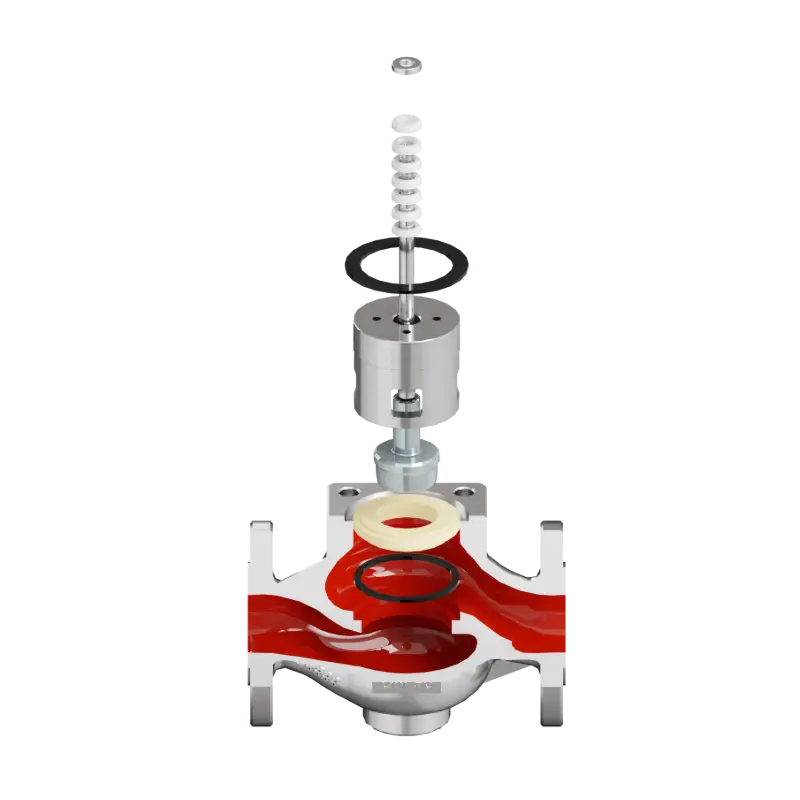

Featuring a top-guided single-seat design for precise alignment and tight shut-off (leakage Class VI). The specially hardened trim and compact pneumatic spring diaphragm actuator ensure accurate flow/pressure control with high responsiveness. Ideal for high-temperature, high-pressure and corrosive media in petroleum, chemical and power industries, offering excellent regulation and easy maintenance.
Contact us
| Product Name | Pneumatic Single-Port Control Valve |
| Model Number | KC10P |
| Nominal Diameter | NPS 1/2" ~ 8" (DN15 ~ DN200) |
| Pressure Rating | Class 150 ~ Class 300 (PN16 ~ PN50) |
| Body Material | Carbon Steel (A), 304 Stainless Steel (S), 316 Stainless Steel (L), Inconel, Monel, Hastelloy, Ti, etc. |
| Bonnet Type | Standard, Extended, Cryogenic, Bellows Seal, Jacketed (Thermal Insulation) |
| Seal Material | PTFE, Metal Seat, Hard Alloy |
| Leakage Class | ANSI Class IV, V, or VI |
| Medium Temperature | -196℃ ~ 540℃ |
| Connection Type | Threaded (1), Welded (2), Flanged (4) |
| Trim Type | Single-Port Control Valve (P) |
| Control Accuracy | ±0.1% |
| Actuation Type | Pneumatic Diaphragm Actuator |
| Supply Pressure | 200–400 kPa |
| Air Supply Port | RC1/4 |
| Pneumatic Actuator | Optional |
| Action Type | Fail Open (FO) – Air-to-Close (B); Fail Closed (FC) – Air-to-Open (K) |
| Optional Accessories | Positioner, Air Filter Regulator, Safety Relief Valve, Limit Switch, Position Transmitter, Handwheel, etc. |
| Stroke (mm) | 10, 16, 25, 40, 60, 100 |
| Remarks | Other special seal materials or temperature requirements can be customized according to customer specifications. |
