Electric Single-seated Control Valve

EC10P

Electric Single-seated Control Valve

Design Features
The core advantage of electric single seat regulating valves lies in their simple structure, tight sealing, and high-precision flow control without the need for a gas source. Its single seat structure provides excellent cutting performance (leakage level can reach ANSI Class IV or higher), especially suitable for working conditions that allow for small pressure differences but require high closure tightness. The electric drive method eliminates the inherent pressure fluctuations in pneumatic systems, provides more stable control, and eliminates the need for air compressors and pneumatic pipelines, reducing system complexity and energy consumption. It is an ideal choice for clean workshops, gas free environments, and precision regulation of small and medium flow rates.

Contact us

  • Specifications

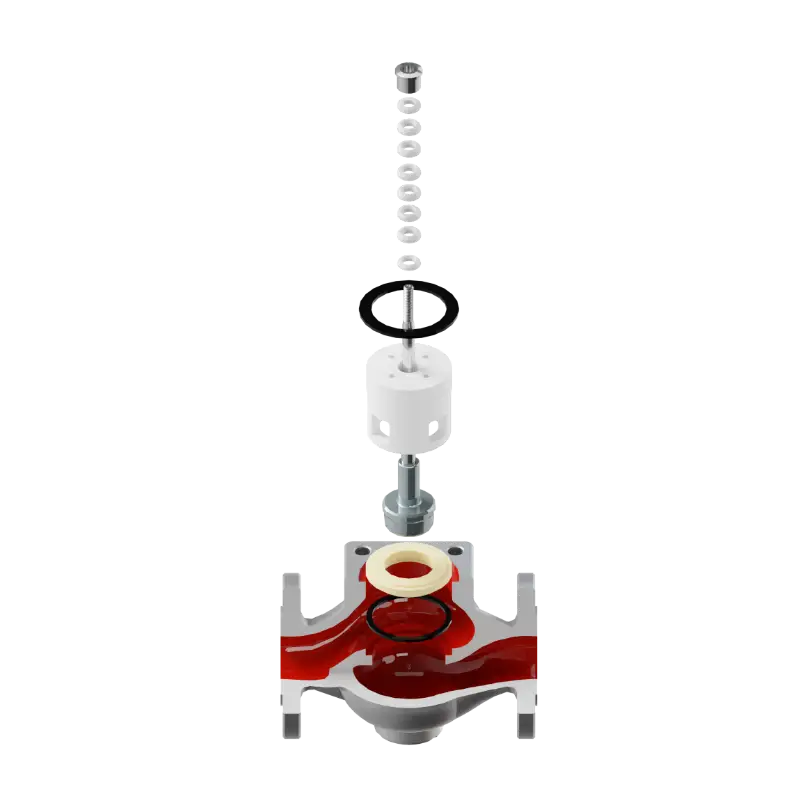

  • Product Illustration
  • Model Description
  • Product Manual
Product Name
Electric Single-seated Control Valve
Product Model
EC10P
Nominal Diameter
NPS 1/2" ~8"(DN15~DN200)
Nominal Pressure
Class150~Class300(PN16~PN50)
Valve body material
WCB,SS304,SS316,Inconel, Monel, Hastelloy, Ti
Valve cover type
STD,EXT,Cryo,Bellow Seal,JKB
Sealing material
PTFE, MOMS, WC
leakage level
ANSIIV、V、VI
medium temperature
-196℃~540℃
connection method
COMP,THD,SW/BW,WAF,FLG
Valve core type
Single-seat Control Valve
control accuracy
±0.1%
Drive Type
Electric Actuator
power supply voltage
110V、220V、380V
input signal
4-20mA,1-5V·DC
output signal
4-20mA·DC
Protection level
IP65
Explosion-proof level
ExdⅡBT4、ExdⅡBT6
Hand operated function
handle
ambient temperature  -25~+70℃、-40~+70℃
ambient humidity
≤95%
mode of action
Can be equipped with accessories
Positioner, air filter pressure reducer, holding valve, travel switch, valve position transmitter, handwheel, etc
Travel distance (mm)
10、16、25、40、60、100
remark
Special sealing materials or special temperatures can also be designed and selected according to customer requirements,
