Electric Cage Control Valve

EC10T

Electric Cage Control Valve

Design Features
The core advantage of electric sleeve regulating valve lies in its comprehensive high performance and high reliability. Its balanced structure significantly reduces the unbalanced force of the valve core, allowing for higher pressure differential conditions and requiring less thrust from the actuator; The sleeve design significantly suppresses cavitation, vibration, and noise, extending the lifespan of the valve; Electric drive does not require a gas source, providing more precise and stable control, especially suitable for automation systems with high pressure differentials, harsh working conditions, and high requirements for control accuracy.

Contact us

  • Specifications

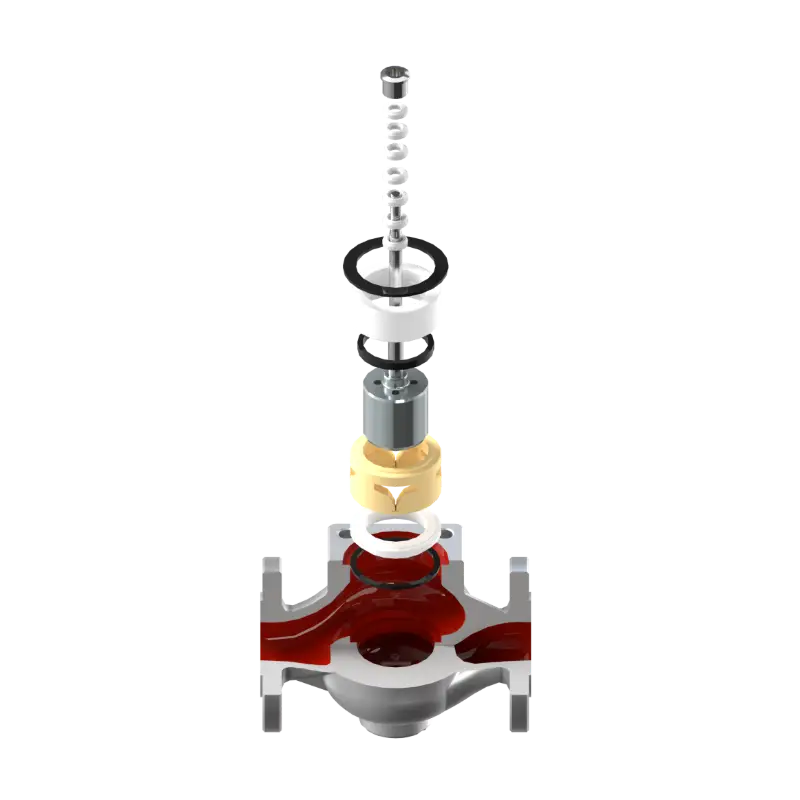

  • Product Illustration
  • Model Description
  • Product Manual
Product Name
Electric Cage Control Valve
Product Model
EC10T
Nominal Diameter
NPS 1 1/2" ~24"(DN40~DN600)
Nominal Pressure
Class300~Class600(PN50~PN100)
Valve body material
WCB,SS304,SS316,Inconel, Monel, Hastelloy, Ti
Valve cover type
STD,EXT,Cryo,Bellow Seal,JKB
Sealing material
PTFE, MOMS,WC
leakage level
ANSIIV、V、VI
medium temperature
-196℃~230℃
connection method
COMP,THD,SW/BW,WAF,FLG
Valve core type
Cage ControlValve
control accuracy
±0.1%
Drive Type
Electric Actuator
power supply voltage
24V、110V,220V、380V
input signal
4-20mA and 1-5V.DC
output signal
4-20mA·DC
Protection level
IP65
Explosion-proof level
ExdⅡBT4、ExdⅡBT6
Hand operated function
handle
ambient temperature
-25~+70℃、-40~+70℃
ambient humidity
≤95%
Can be equipped with accessories
Positioner, air filter pressure reducer, holding valve, travel switch, valve position transmitter, handwheel, etc
Travel distance (mm)
10、16、25、40、60、100
remark
Special sealing materials or special temperatures can also be designed and selected according to customer requirements
