EC10S
Electric Multi-stage Control Valve
Design Features

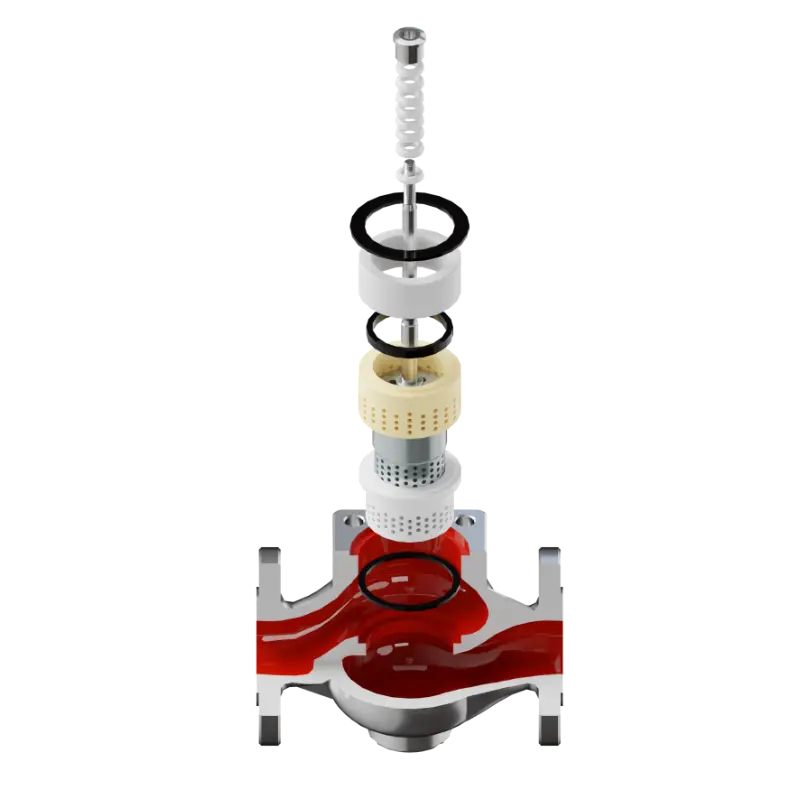

The electric multi-stage pressure reducing regulating valve adopts a multi-stage labyrinth pressure reducing module integrated design, which gradually reduces the pressure of high-pressure fluid through a series of throttling orifice plates and symmetrical flow channels, completely eliminating the concentrated release of energy; Equipped with high-precision intelligent electric actuators to directly drive the valve core, achieving micrometer level displacement control. The valve internals are made of hard alloy and ceramic composite materials to resist high-speed fluid erosion.
Contact us
| Product Name | Electric Multi-stage Control Valve |
|
Product Model |
EC10S |
|
Nominal Diameter |
NPS 1 1/2" ~24"(DN15~DN600) |
|
Nominal Pressure |
Class600~Class2500(PN100~PN420) |
|
Valve body material |
WCB,SS304,SS316,Inconel, Monel, Hastelloy,Ti |
|
Valve cover type |
STD,EXT,Cryo,Bellow Seal |
|
Sealing material |
PTFE,MOMS,WC |
|
leakage level |
ANSIIV、V、VI |
|
medium temperature |
-196℃~540℃ |
|
connection method |
COMP,THD,SW/BW,WAF,FLG |
|
Valve core type |
Multi-stage pressure reduction control valve |
|
control accuracy |
±0.1% |
|
Drive Type |
Electric Actuator |
|
power supply voltage |
110V、220V、380V |
|
input signal |
4-20mA and 1-5V.DC |
|
output signal |
4-20mA·DC |
|
Protection level |
IP65 |
|
Explosion-proof level |
ExdⅡBT4、ExdⅡBT6 |
|
Hand operated function |
handle |
| ambient temperature | -25~+70℃、-40~+70℃ |
|
ambient humidity |
≤95% |
|
Can be equipped with accessories |
Positioner, air filter pressure reducer, holding valve, travel switch, valve position transmitter, handwheel, etc |
|
Travel distance (mm) |
10、16、25、40、60、100 |
|
remark |
Special sealing materials or special temperatures can also be designed and selected according to customer requirements |
