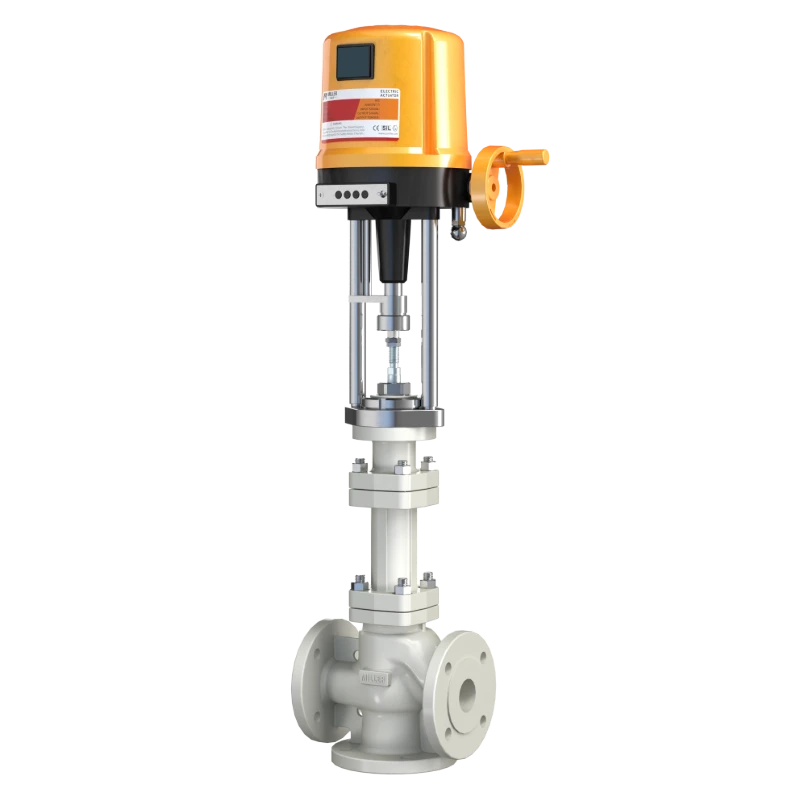

EC10H
Electric 3-Way Mixing/Diverging Control Valve
Design Features

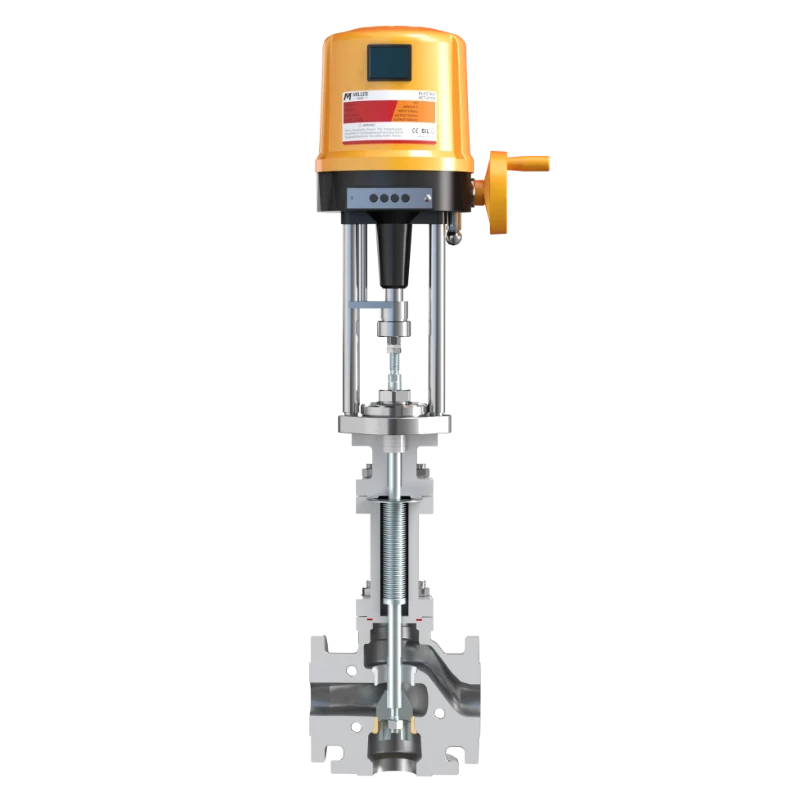

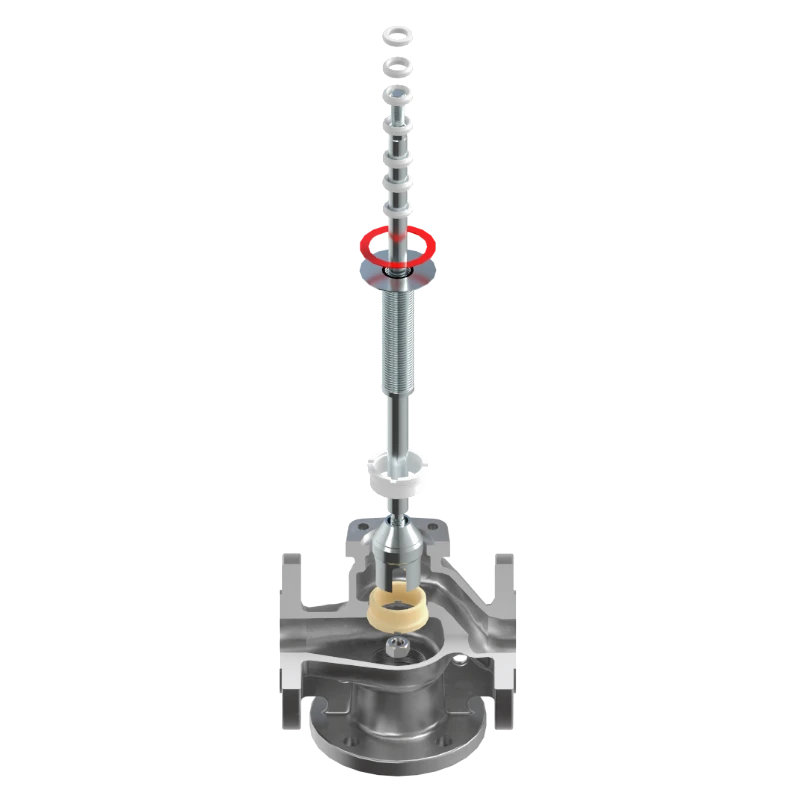

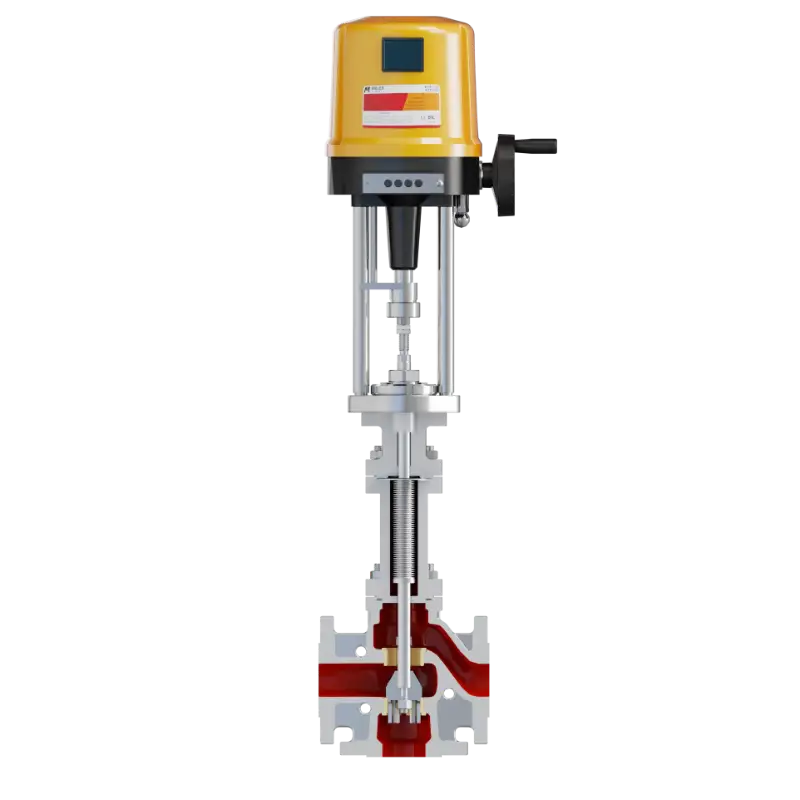

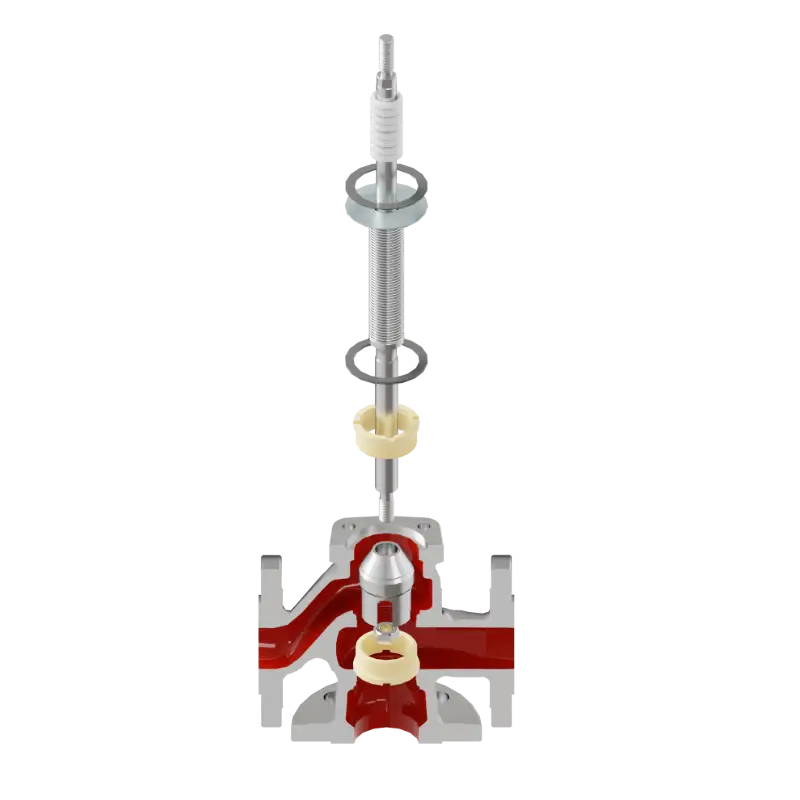

The electric three-way mixing/diverting control valve features an integrated valve body with dual-plug or sleeve configurations. A precision electric actuator directly drives the valve stem to achieve precise mixing and diverting of two fluid streams. Internal flow passages are optimized via fluid dynamics analysis to ensure smooth transition under elevated temperature and pressure conditions, incorporating a self-centering mechanism to guarantee accurate and reliable operation.
Contact us
| Product Name | Electric 3-Way Mixing/Diverging Control Valve |
| Model Number | EC10H |
| Nominal Diameter | NPS 1/2" ~ 12" (DN15 ~ DN300) |
| Pressure Rating | Class 150 ~ Class 600 (PN16 ~ PN100) |
| Body Material | Carbon Steel (A), 304 Stainless Steel (S), 316 Stainless Steel (L), Inconel, Monel, Hastelloy, Ti, etc. |
| Bonnet Type | Standard, Extended, Cryogenic, Bellows Seal, Jacketed (Thermal Insulation) |
| Seal Material | PTFE, Metal Seat, Hard Alloy |
| Leakage Class | ANSI Class IV, V |
| Medium Temperature | -196℃ ~ 540℃ |
| Connection Type | Threaded, Welded, Flanged |
| Trim Type | 3-Way Mixing / Diverging Control Valve |
| Control Accuracy | ±0.1% |
| Actuation Type | Electric Actuator |
| Power Supply Voltage | 24 V, 110 V, 220 V, 380 V AC/DC (Optional) |
| Input Signal | 4–20 mA or 1–5 V DC |
| Output Signal | 4–20 mA DC |
| Protection Rating | IP65 |
| Explosion-Proof Rating | Exd II BT4, Exd II BT6 |
| Manual Override | Handwheel |
| Ambient Temperature | -25℃ ~ +70℃, -40℃ ~ +70℃ |
| Ambient Humidity | ≤95% |
| Optional Accessories | None (Standard Configuration) |
| Stroke (mm) | 10, 16, 25, 40, 60, 100 |
| Remarks | Other special seal materials or temperature requirements can be customized according to customer specifications. |
