KB50G
Electric Fixed Ball Valve
Design Features

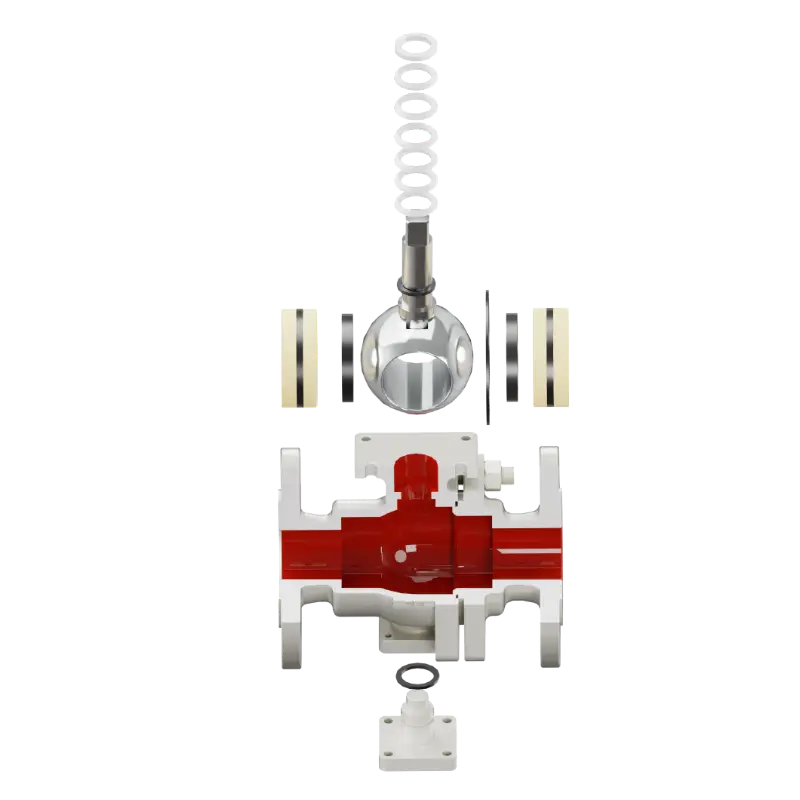

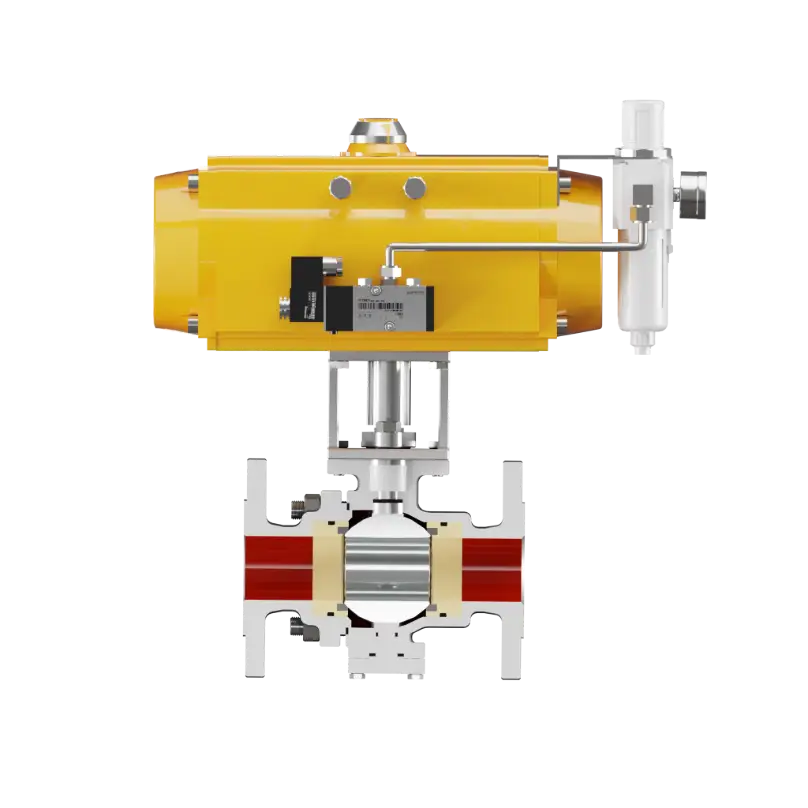

Pneumatic fixed ball valve adopts a ball structure supported by upper and lower fixed shafts, with low operating torque and stable sealing performance; The valve seat adopts a dual sealing design of elastic pre tightening and medium pressure assistance, achieving bidirectional zero leakage; Equipped with high-performance pneumatic actuators (with integrated locators), supporting fast 90 ° stroke control, and featuring fire-resistant, anti-static, and anti valve stem blowing safety structures.
Contact us
| Product Name | Electric Fixed Ball Valve |
| Product Model | KB50G |
| Nominal Diameter | NPS 1/2" ~40"(DN15~DN1000) |
| Nominal Pressure | Class150~Class2500(PN16~PN420) |
| Valve body material | WCB, SS304,SS316, inconel, Monel,Hastelloy, Ti |
| Valve cover type | |
| Sealing material | PTFE,MOMS,WC |
| leakage level | ANSI IV、V、VI |
| medium temperature | -196℃~800℃ |
| connection method | SW/BW,FLG |
| Valve core type | Fixed Type |
| control accuracy | ±0.1% |
| Drive Type | Pneumatic Actuator |
| gas supply pressure | 400-800kpa |
| air supply port | G1/4"、G1/8"、G3/8"、G1/2" |
| pneumatic actuator | optional |
| mode of action | On/Off Type (Two-position control),Modulating Type (4-20mA control) |
| Single acting actuator | AirtoClose -- FO,Airto Open -- FC |
| Dual acting actuator | Air-to-Close -- FL,Air-to-Open -- FL |
| Can be equipped with accessories | Positioner, air filter pressure reducer, holding valve, travel switch, valve position transmitter, handwheel, etc |
| Journey (°) | 0°--90° |
| remark | Special sealing materials or special temperatures can also be designed and selected according to customer requirements, |
