KB50V
Pneumatic V-Port Ball Valve
Design Features

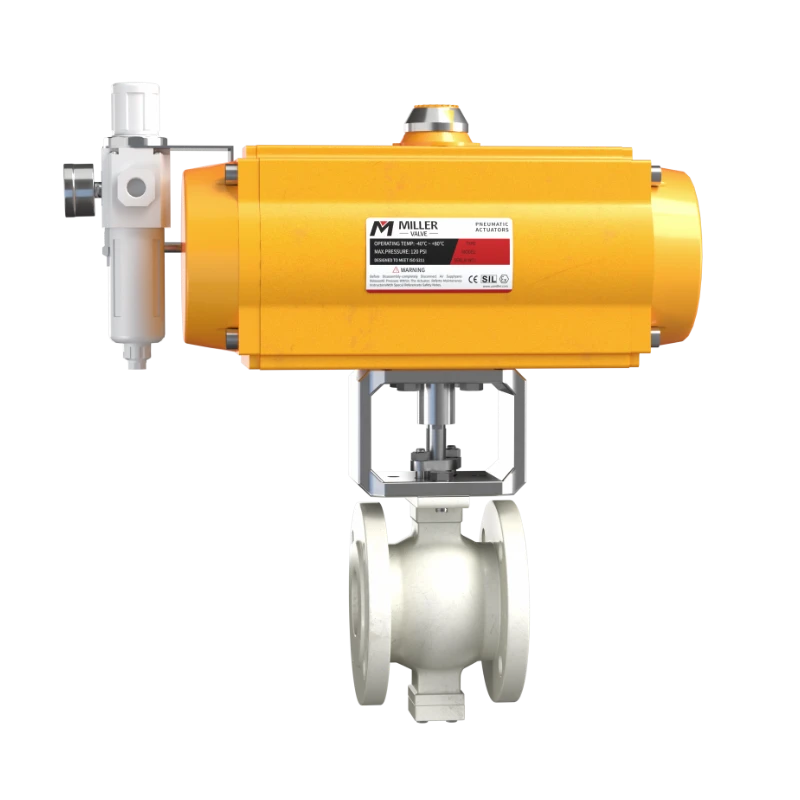

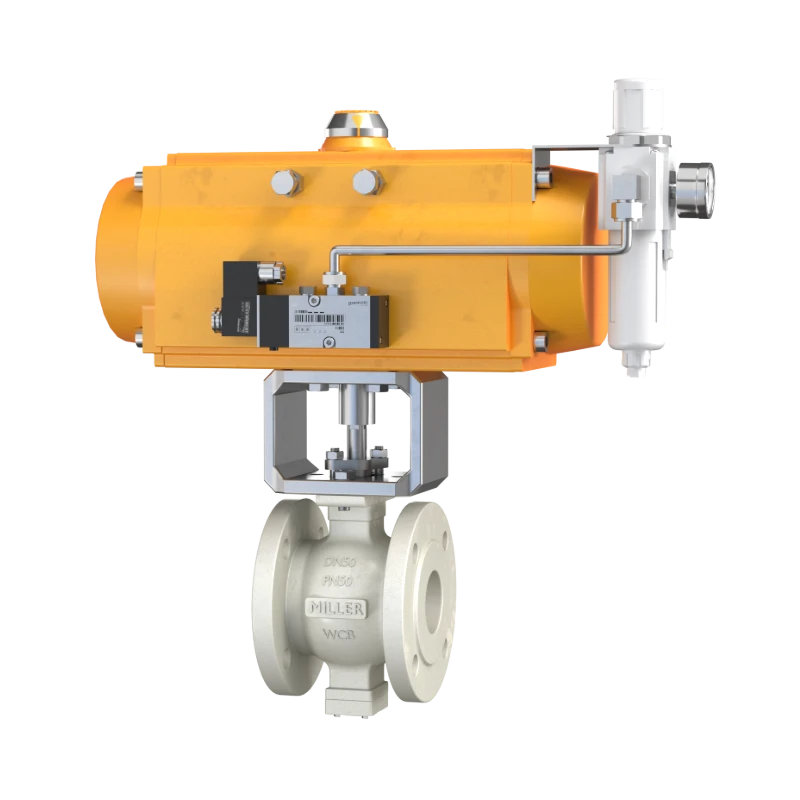

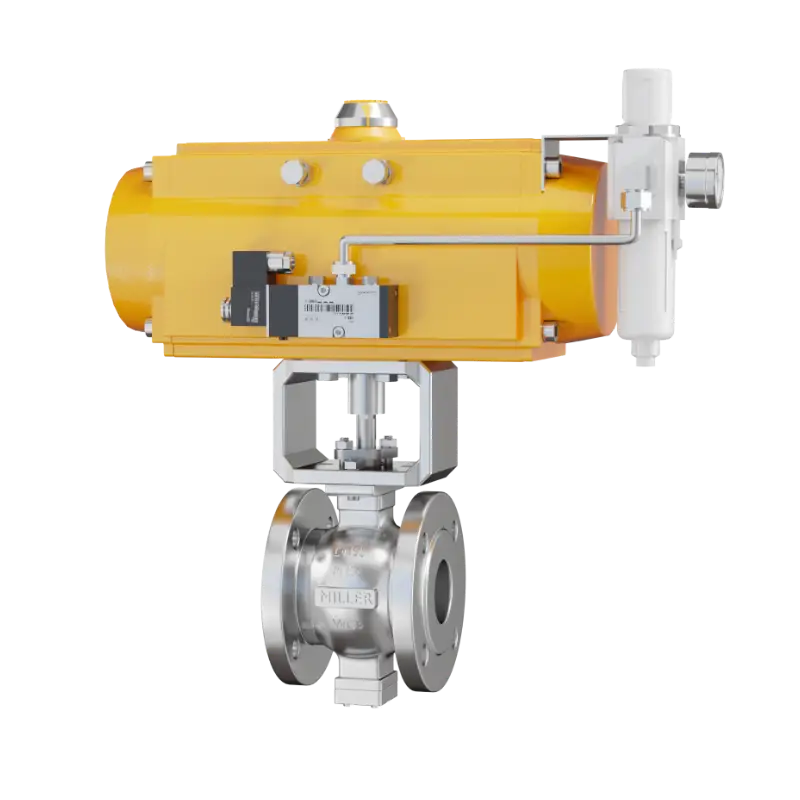

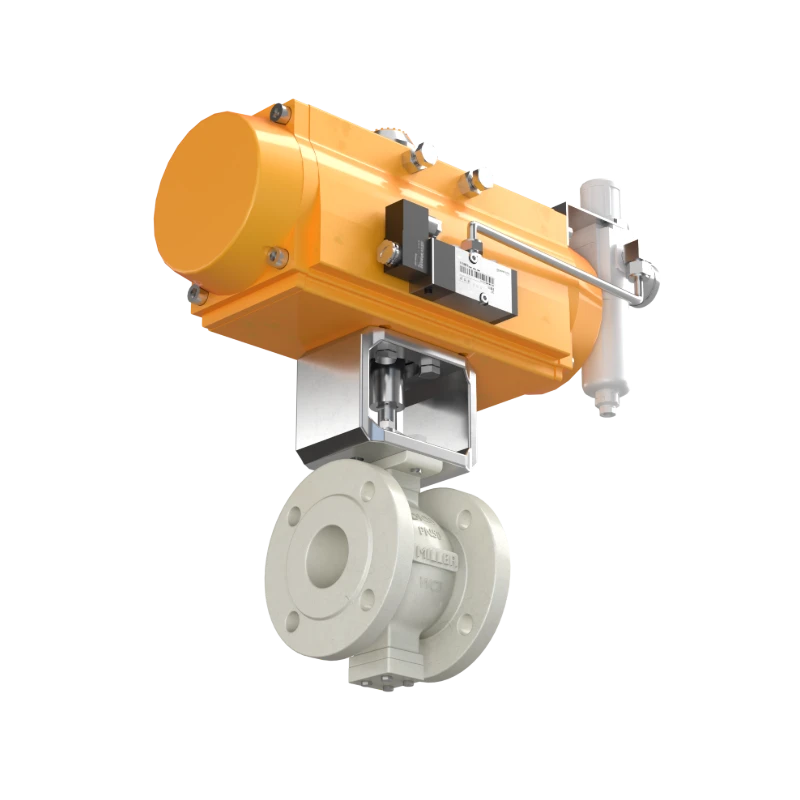

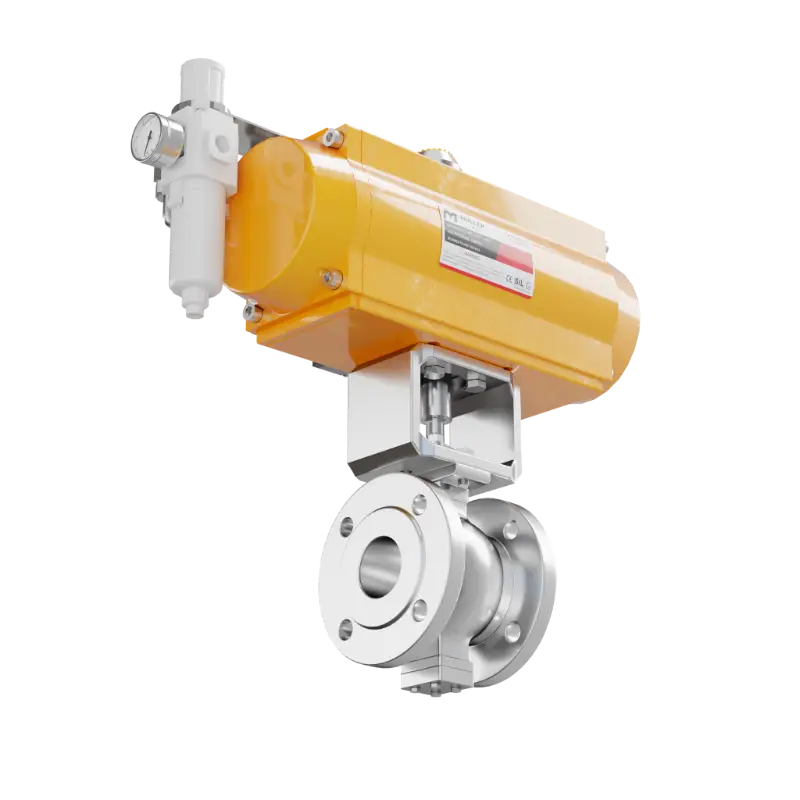

The pneumatic V-port ball valve features a V-shaped notched ball core enabling equal percentage flow control through rotation. It is equipped with a precision pneumatic actuator (integrated positioner for precise throttling control), with valve seats available in hardened sealing or reinforced PTFE materials to handle fibrous and particulate media. The valve body flow passage is optimized to minimize buildup.
Contact us
| Product Name | Pneumatic V-Port Ball Valve |
| Model Number | KB50V |
| Nominal Diameter | NPS 1" ~ 20" (DN25 ~ DN500) |
| Pressure Rating | Class 150 ~ Class 600 (PN10 ~ PN63) |
| Body Material | Carbon Steel (A), 304 Stainless Steel (S), 316 Stainless Steel (L), Inconel, Monel, Hastelloy, Titanium (Ti), etc. |
| Bonnet Type | Standard Bonnet (Integral), Optional Extended Bonnet for High-Temperature Service |
| Seal Material | PTFE, Metal-to-Metal Seal, Hard Alloy (Stellite or Tungsten Carbide) |
| Leakage Class | ANSI Class VI (Bubble-tight Seal) |
| Medium Temperature | -29℃ ~ 450℃ |
| Connection Type | Lug Type (3), Flanged (ASME B16.5, RF/RTJ, Type 4) |
| Trim Configuration | V-Port (V) |
| Control Accuracy | ±0.1% |
| Actuation Type | Pneumatic Actuator |
| Air Supply Pressure | 400–800 kPa |
| Air Inlet Port | G1/4", G1/8", G3/8", G1/2" (ISO 228 Parallel Metric Pipe Thread) |
| Pneumatic Actuator | Optional (Double-Acting or Spring-Return) |
| Control Mode | On/Off Type (Two-Position Control), Modulating Type (4–20 mA Control) |
| Single-Acting Actuator | Air-to-Close (B) – Fail-Open (FO), Air-to-Open (K) – Fail-Closed (FC) |
| Double-Acting Actuator | Air-to-Close (B) – Fail-Latched (FL), Air-to-Open (K) – Fail-Latched (FL) |
| Optional Accessories | Positioner, Air Filter Regulator, Lock-up Valve, Limit Switch Box, Valve Position Transmitter, Handwheel Operator, Solenoid Valve |
| Stroke (°) | 0° ~ 90° |
| Remarks | Other special seal materials or temperature requirements can be customized according to customer specifications. |
